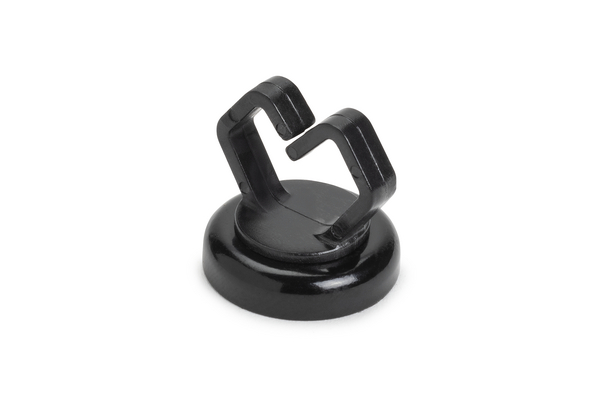

Cable tie mount, black, 10pcs.
Art.-Nr. 151-04027 | MAGC10S-NDFEB35M/POM/ST-BK |  Details

    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Magnet
    Magnetic pull strength (N) 44N
    Magnetic pull strength (kgf) 4.49
    Magnetic pull strength (lb/ft) 10lbf-ft
    Material Neodymium alloy 35M (NDFEB35M), Polyacetal (POM), Steel (ST)
    PART DESCRIPTION MAGC10S-NDFEB35M/POM/ST-BK
    Pack Cont. 10pcs.
    Package Content packed in bag
    Type MAGC10S
    Bundle Diameter Nom. (ND) 12.7 mm
    Depth (D) 3.9mm
    Diameter (D) 19mm
    Height (H) 18.5mm
    Height (H2) 14.0mm
    Length (L) 15.8mm
    Rotation (°) 360°
    ∅ D 0.75"
    CE Certification No
    CSA Certified Yes
    Halogen-free Yes
    Operating Temperature -40 °C to +80 °C
    Plenum Rating AH-2
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UL-File Number E64139
    Country of Origin US
    GTIN-13 / EAN 4031026730097
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
    Self-Adhesive cable tie mounts Self-Adhesive cable tie mounts

    Self-Adhesive cable tie mounts

    HellermannTyton self-adhesive cable tie mounts are perfectly suited for cable fastening on round and angled surfaces. To save time, reduce part diversity and weight.
