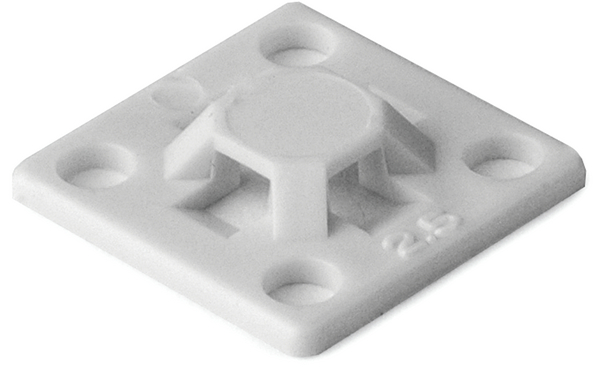

Cable tie mount for adhesive use, Wmax=2.6mm, Adhesive, natural, 100pcs.
Art.-Nr. 151-00520 | MB2A-PA66-NA |  Details

Compact size fits most mounting applications.

    • Simple to instal
    • Excellent security, particularly in areas of high vibration
    • Maximum surface area with adhesive to achieve high pull-off force
    • 4-way entry for cable tie for quicker and more flexible installation
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Where speed, simplicity and a firm fixing base are required these self adhesive clips are ideal. Particularly suitable for use in control cabinets, telecoms equipment or domestic appliances where the use of holes, screws, or nuts and bolts is impractical or undesirable.
    Colour Natural (NA)
    Fixation Method Screw Mounting and Adhesive
    Material Polyamide 6.6 (PA66)
    Mounting Screw Type Adhesive
    PART DESCRIPTION MB2A-PA66-NA
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family MB-Series square design, self-adhesive
    Product Group Cable tie mounts
    Strap Thickness max. 1.2
    Type MB2A
    Height (H) 4.2mm
    Length (L) 13.0mm
    Load max. 2.5N
    Strap Width max. (G) 2.6mm
    Width (W) 13.0mm
    Adhesive Synthetic rubber
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    GTIN-13 / EAN 4944387300109
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
    Show all
    Self-Adhesive cable tie mounts Self-Adhesive cable tie mounts

    Self-Adhesive cable tie mounts

    HellermannTyton self-adhesive cable tie mounts are perfectly suited for cable fastening on round and angled surfaces. To save time, reduce part diversity and weight.
