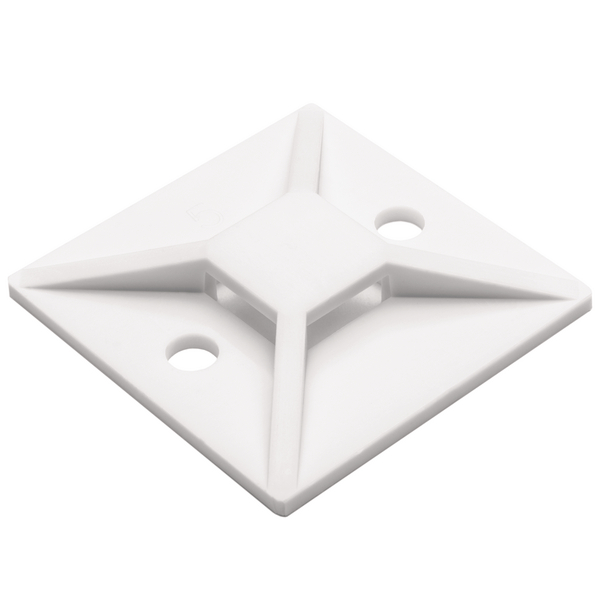

Cable tie mount for screw fixation, Wmax=8.9mm, ∅4.8 mm, #8 Screw, white, 100pcs.
Art.-Nr. 151-00324
| MB5-PA66-WH
|
Details
- Screwable or self-adhesive versions
- Simple to install with a screw or bolt
- Excellent security, particularly in areas of high vibration
- Maximum surface area with adhesive to achieve high pull-off force
- 4-way entry for cable tie for quicker and more flexible installation
More products in this product group:
| Application | Designed specifically for holding heavier cable bundles these mounting bases can be used in many industries from Agriculture to Truck manufacture, they offer a very secure fixing and can be used with a wide variety of heavy duty cable ties up to 9mm wide. |
| Colour | White (WH) |
| Fixation Method | Screw Mount |
| For Ties | T18 - T150 |
| Material | Polyamide 6.6 (PA66) |
| Mounting Screw Type | #8 Screw |
| PART DESCRIPTION | MB5-PA66-WH |
| Pack Cont. | 100pcs. |
| Package Content packed in | bag |
| Product Family | MB-Series square design, screwable |
| Product Group | Screw fixing cable tie mounts |
| Short Description | Screwable Fixing Mount 37.7x37.7 natural |
| Type | MB5 |
Download
| CE Certification | Yes |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +85 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B |
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US and Canada) | Yes |
| UL-File Number | E64139 |
| UV-Stabilised | No |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026430294 |
| Packaging 1 - Height (m) | 0.081m |
| Packaging 1 - Length (m) | 0.194m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00281m³ |
| Packaging 1 - Weight (kg) | 0.330001kg |
| Packaging 1 - Width (m) | 0.179m |
| Packaging 3 - Height (m) | 0.212725m |
| Packaging 3 - Length (m) | 0.51435m |
| Packaging 3 - Qty | 3000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0347m³ |
| Packaging 3 - Weight (kg) | 10.52003kg |
| Packaging 3 - Width (m) | 0.3175m |
| Packaging 4 - Height (m) | 1.209m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 60000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.161m³ |
| Packaging 4 - Weight (kg) | 231.4kg |
| Packaging 4 - Width (m) | 0.8m |
