Cable tie mount for screw fixation, Wmax=5.2mm, ∅3.7 mm, #6 (M3) Screw, natural, 100pcs.
Art.-Nr. 154-00000 | MP1M3-PA66-NA |  Details

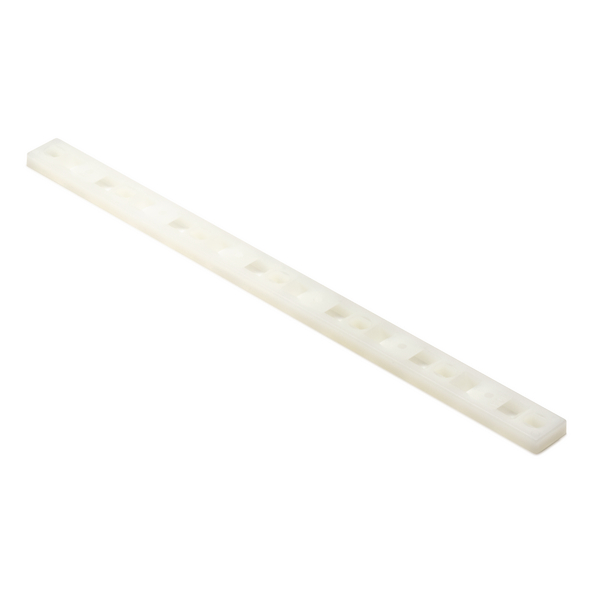

MSMP4 mounting plate, screwable.

    • Allow multiple cables to run in parallel
    • Simple to fix with two screws
    • Cables are fixed by using a cable tie through any combination of the available slots
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Many applications require each cable run to be firmly held in place but to be held separately from adjacent cable runs (example - control cabinets, machinery and military systems). The MP series of mounts can achieve this.
    Colour Natural (NA)
    Fixation Method Screw Mount
    For Ties T18 - T50
    Material Polyamide 6.6 (PA66)
    Mounting Screw Type #6 (M3) Screw
    No. of bundles 1
    PART DESCRIPTION MP1M3-PA66-NA
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family MP-Series for parallel bundling
    Product Group Mounting plates for screw fixing
    Type MP1M3
    Fixing Hole Centres (F) 1.25"
    Fixing Hole Centres (F) 31.8mm
    Height (H) 3.2mm
    Hole Size (HS) 6.4mm
    Length (L) 44.4mm
    Strap Width max. (G) 0.2"
    Strap Width max. (G) 5.2mm
    Width (W) 12.7mm
    for Hole ∅ (FH) 3.7 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660313059
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
