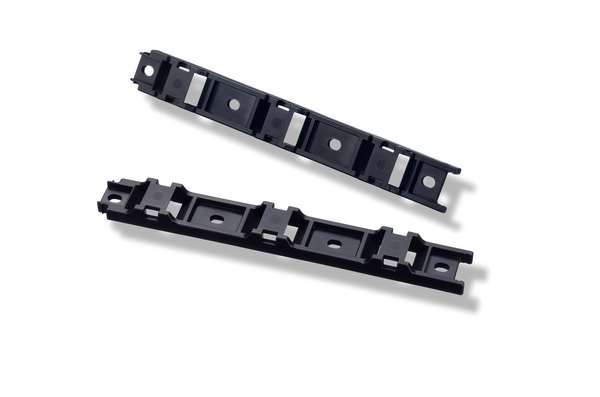

Cable tie mount for screw fixation, black, 20pcs.
Art.-Nr. 151-03952 | MP3M4-PA66W-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads

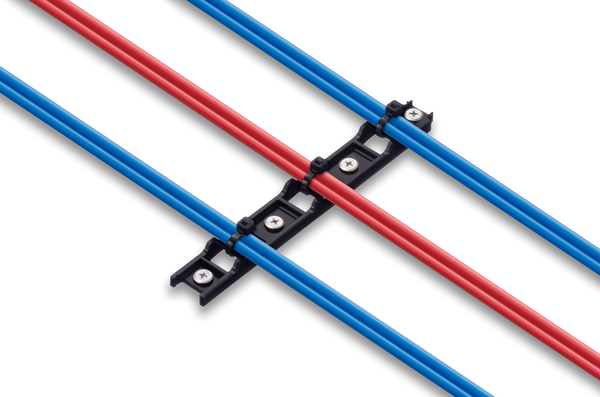

    Application Many applications require each cable run to be firmly held in place but to be held separately from adjacent cable runs (example - control cabinets, machinery and military systems). The MP series of mounts can achieve this.
    Colour Black (BK)
    Fixation Method Screw Mounting and Rivet
    Material Polyamide 6.6, UV-resistant (PA66W)
    PART DESCRIPTION MP3M4-PA66W-BK
    Pack Cont. 20pcs.
    Package Content packed in bag
    Product Family MP-Series for parallel bundling
    Product Group Mounting plates for screw fixing

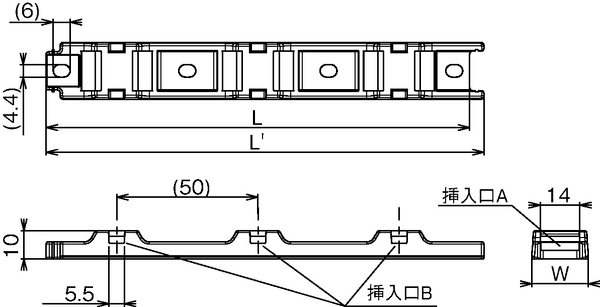

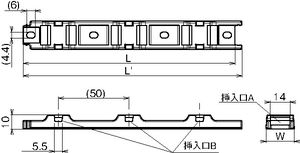

    Type MP3M4
    Fixing Hole Centres (F) 50mm
    Height (H) 6mm
    Length (L) 155mm
    Width (W) 20mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    GTIN-13 / EAN 4944387125078
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
