Cable tie mount for adhesive use, Wmax=8.5mm, black, 100pcs.
Art.-Nr. 151-04322 | PMB6-PA66/6HIRHS-BK |

Copied

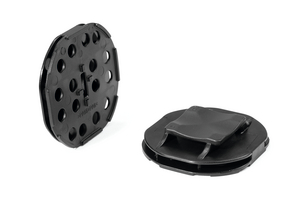

PMB5 mount with paste adhesive.

    • PMB-Series for fixings with paste / liquid adhesive
    • Mount geometry offers a good form closure with cured adhesive
    • Can even be installed onto uneven surfaces
    • PMB5 can also be applied in combination with hot-melt adhesive, as mount is made of heat resistant PA66
    • PMB3 is made of flame-retardant material PA666V0
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application PMB-Series offers a fixing solution wherever screw fixing is not allowed. Due to the design the mounts can even be installed onto uneven surfaces. PMB paste mounts are used in the railway industry as well as in the renewable energy industry. Further applications are in the electrical industry and the production of switching cabinets. PMB-Series is suitable for fixings with paste/liquid adhesive.
    Colour Black (BK)
    Fixation Method Pasting / Stick
    Key product features liquid/paste adhesive, uneven surfaces
    Material Polyamide 6.6/6, high impact modified, heat stabilised (PA66/6HIRHS)
    PART DESCRIPTION PMB6-PA66/6HIRHS-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family PMB mount for uneven surfaces
    Product Group Paste adhesive mount
    Type PMB6

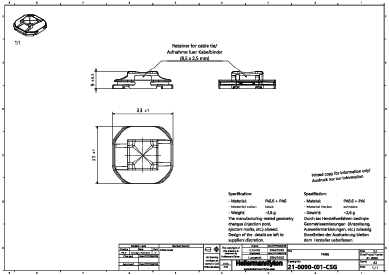

    Height (H) 9mm
    Length (L) 31mm
    Strap Width max. (G) 8.5mm
    Weight/Unit 0.002498kg
    Width (W) 33mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026752006
    Packaging 1 - Height (m) 0.03m
    Packaging 1 - Length (m) 0.25m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00165m³
    Packaging 1 - Weight (kg) 0.25878kg
    Packaging 1 - Width (m) 0.22m
    Packaging 3 - Height (m) 0.184m
    Packaging 3 - Length (m) 0.58m
    Packaging 3 - Qty 2400
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0406m³
    Packaging 3 - Weight (kg) 6.81072kg
    Packaging 3 - Width (m) 0.38m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 57600
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 184.469kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
    Self-Adhesive cable tie mounts Self-Adhesive cable tie mounts

    Self-Adhesive cable tie mounts

    HellermannTyton self-adhesive cable tie mounts are perfectly suited for cable fastening on round and angled surfaces. To save time, reduce part diversity and weight.
