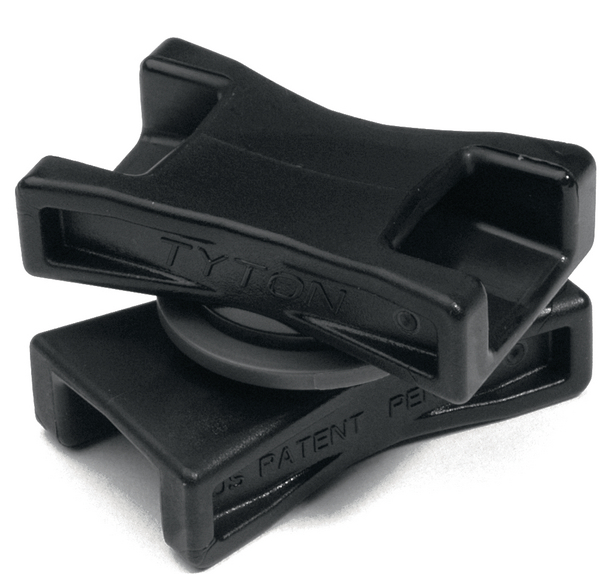

Cable tie mount for cable bundles, Wmax=12.7mm, black, 500pcs.
Art.-Nr. 151-06501 | PT2A-PA66HS/PA46-BK |  Details

The spacers can be easily rotated by hand, allowing the bundles to be crossed and rotated at any angle.

    • For parallel routing of bundles that can be twisted 360° even after setting
    • Secure alignment to the bundle due to H-design
    • Cable tie head can be moved after bundling
    • For cable ties up to 12.7 mm wide
    • For post-installation of bundles
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application These fixing element for parallel routing can be used where bundles need separation from each other combined with the necessary functionality to support moving harnesses.
    Colour Black (BK)
    For Ties T50 - T250
    Key product features rotatable, vibration absorbing, for multiple routing
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 4.6 (PA46)
    PART DESCRIPTION PT2A-PA66HS/PA46-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family DSWS-Series
    Product Group Cable tie mount for parallel routing, twistable 360°
    Type PT2A
    Bundle Diameter max (metric) 152.0mm
    Bundle ∅ 16.0-152.0mm
    Bundle ∅ min. 16.0mm
    Height (H) 23.6mm
    Length (L) 40.6mm
    Strap Width max. (G) 0.5"
    Strap Width max. (G) 12.7mm
    Width (W) 25.4mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Min. Extr. Force (lbs) 250.0lbs
    Min. Extraction Force (N) 1112N
    Operating Temperature -40 °C to +125 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026427232
    Packaging 3 - Height (m) 0.142875m
    Packaging 3 - Length (m) 0.5159375m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0229m³
    Packaging 3 - Weight (kg) 7.58kg
    Packaging 3 - Width (m) 0.31115m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
    Self-Adhesive cable tie mounts Self-Adhesive cable tie mounts

    Self-Adhesive cable tie mounts

    HellermannTyton self-adhesive cable tie mounts are perfectly suited for cable fastening on round and angled surfaces. To save time, reduce part diversity and weight.
