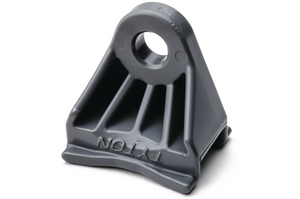

Cable tie mount for screw fixation, Wmax=12.7mm, ∅8.0 mm, ∅8.0 mm, 5/16" (M8) Screw, black, 500pcs.
Art.-Nr. 151-29700 | SAOM8-PA66HIRHSUV-BK |  Details

Axial oval mounts stand off bundles from frame rails and cross members to prevent them from rubbing and chafing.

    • Guides bundles securely above sharp edges
    • For threaded bolts or screws
    • Can be used in combination with heavy duty cable ties
    • For cable ties up to 12.7 mm width
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application This axial oval mount stands off bundles from frame rails and cross members to prevent them from rubbing and chafing. They can be perfectly used in combination with heavy duty cable ties up to 12.7 mm width – ideal to securely fix cables and wires in the railway and shipbuilding industry as well as in truck and agricultural vehicle construction.
    Colour Black (BK)
    Fixation Method Screw Mounting and Rivet
    Key product features vibration absorbing
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Mounting Screw Type 5/16" (M8) Screw
    PART DESCRIPTION SAOM8-PA66HIRHSUV-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family SAM83 with a socket counter bore
    Product Group Harness clip for heavy duty applications, for screws or threaded bolts for edges
    Type SAOM8
    Height (H) 35.0mm
    Length (L) 34.0mm
    Strap Width max. (G) 0.5"
    Strap Width max. (G) 12.7mm
    Stud ∅ 0.3125"
    Stud ∅ 8.0 mm
    Width (W) 26.0mm
    for Hole ∅ (FH) 8.0 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin US
    GTIN-13 / EAN 4031026749860
    Packaging 3 - Height (m) 0.142875m
    Packaging 3 - Length (m) 0.5159375m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0229m³
    Packaging 3 - Weight (kg) 4.58kg
    Packaging 3 - Width (m) 0.31115m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
