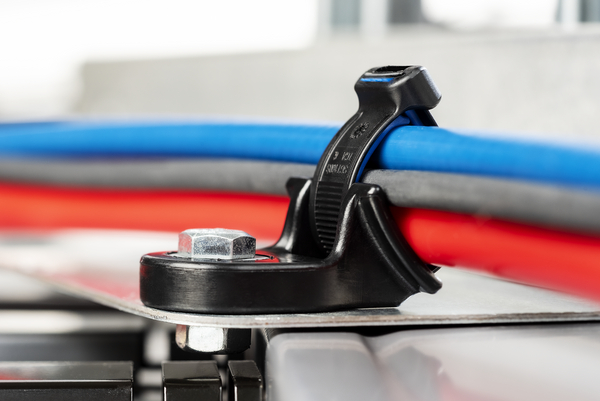

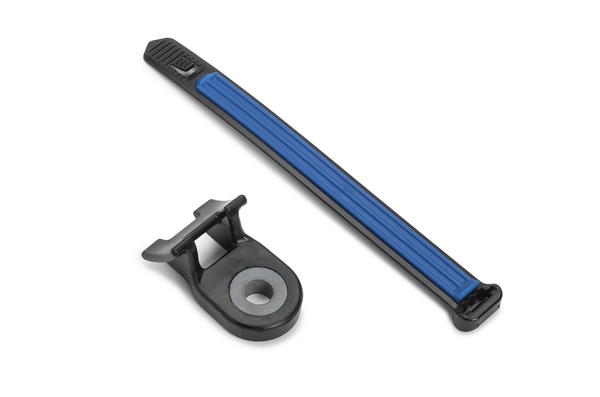

Fixing tie for screw fixation, inside serrated, ⌀10.0-25.4mm, black/blue, 500pcs.
Art.-Nr. 156-03169 | SGT100SHDM320SET-PA66HIRHSUV/TPE-BK/BU |

Copied

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Cable Tie Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Colour Black (BK), Blue (BU)
    Fixation Method Screw Mount
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Thermoplastic Elastomer (TPE)
    PART DESCRIPTION SGT100SHDM320SET-PA66HIRHSUV/TPE-BK/BU
    Pack Cont. 500pcs.
    Package Content packed in bag
    Releasable Closure (Yes/No) No
    Strap Thickness max. 2.85mm
    Tie Closure plastic pawl
    Type SGT100SHDM320SET
    Variant Inside Serrated
    Bundle ⌀ 10.0-25.4mm
    Bundle ⌀ min. 10.0mm
    Bundle Diameter max (metric) 25.4mm
    Cable Tie Head Height (metric) 7.5mm
    Cable Tie Head Width (metric) 16.0mm
    Height (H) 20.7mm
    Length (L) 140.0mm
    Min.Tensile Strength 315N
    Width (W) 12.7mm
    for Hole ⌀ (FH) 8.31 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised Yes
    Country of Origin US
    GTIN-13 / EAN 4031026710167
    Packaging 3 - Height (m) 0.136525m
    Packaging 3 - Length (m) 0.5191125m
    Packaging 3 - Qty 500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0217m³
    Packaging 3 - Weight (kg) 11.4kg
    Packaging 3 - Width (m) 0.3063875m
    Packaging 4 - Qty 28000
    Packaging 4 - Type pallet
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121731
