23/12/2024

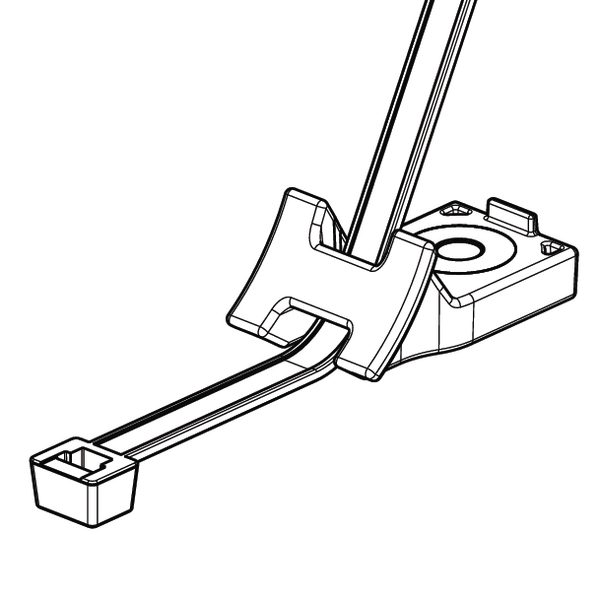

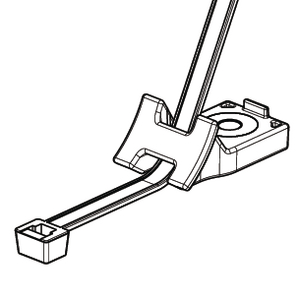

Fixing tie for screw fixation, inside serrated, ∅5.0-105.0mm, black, 500pcs.
Art.-Nr. 156-02794 | T120RHDM6TSSET-PA66HIRHSUV-BK |  Details

These HDM (Heavy duty mount) are suitable for assembling on screws.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Screw Mount
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Mounting Screw Type M6 Screw
    PART DESCRIPTION T120RHDM6TSSET-PA66HIRHSUV-BK
    Pack Cont. 500pcs.
    Package Content packed in box
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T120RHDM6TSSET
    Variant Inside Serrated
    Bundle Diameter max (metric) 105.0mm
    Bundle ∅ 5.0-105.0mm
    Bundle ∅ min. 5.0mm
    Length (L) 390.0mm
    Min.Tensile Strength 535N
    Thickness (T) 1.8mm
    Width (W) 7.6mm
    Width (W2) 20.0mm
    for Hole ∅ (FH) 6.2 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin US
    GTIN-13 / EAN 4031026631509
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121731
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
