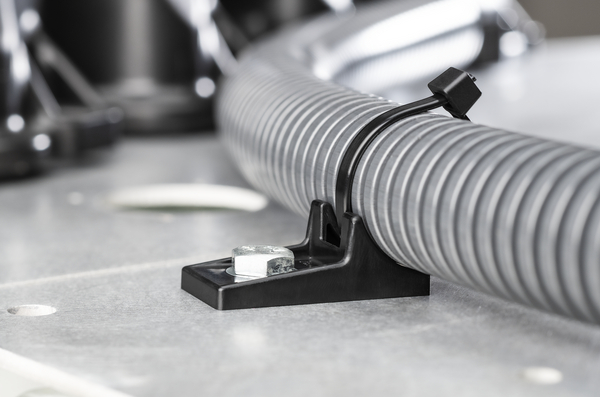

Fixing tie for screw fixation, inside serrated, ⌀2.0-50.0mm, black, 1000pcs.
Art.-Nr. 156-03972 | T50RCPCM67DTSSET-PA66HIRHS(REC)-BK |

Copied

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Screw Mount
    Identification Plate Position none
    Material Polyamide 6.6 recycled, high impact modified, heat stabilised (PA66HIRHS(REC))
    Mounting Screw Type #1/4" (M6) Screw
    PART DESCRIPTION T50RCPCM67DTSSET-PA66HIRHS(REC)-BK
    Pack Cont. 1000pcs.
    Package Content packed in carton
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50RCPCM67DTSSET
    Variant Inside Serrated
    Bundle ⌀ 2.0-50.0mm
    Bundle ⌀ min. 2.0mm
    Bundle Diameter max (metric) 50.0mm
    Height (H) 15.5mm
    Length (L) 202.0mm
    Min.Tensile Strength 225N
    Stud ⌀ 0.24"
    Stud ⌀ 6.0 mm
    Width (W) 20.0mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.<BR>ReSource highlights HellermannTyton products that are made from reccled waste or from virgin materials with relatively lower carbon emissions. Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.
    ReSource highlights HellermannTyton products that are made from reccled waste or from virgin materials with relatively lower carbon emissions.
    Country of Origin MX
    GTIN-13 / EAN 4031026703008
    Packaging 3 - Height (m) 0.136525m
    Packaging 3 - Length (m) 0.5191125m
    Packaging 3 - Qty 1000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0217m³
    Packaging 3 - Weight (kg) 4.2kg
    Packaging 3 - Width (m) 0.3063875m
    Packaging 4 - Qty 56000
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121731
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
