24/12/2024

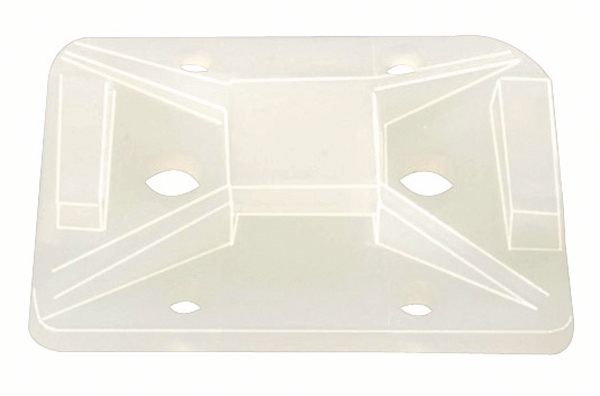

Cable tie mount for adhesive use, Wmax=8.0mm, ∅3.2 mm, natural, 100pcs.
Art.-Nr. 151-11819 | TY8G1S-PA66-NA |  Details

TY8G1 TY8G1S Natural Fixing Cable Tie Screw Mount

    • 2-way mounting base for safe guiding of cables and conduits
    • Suitable for applications with minimal space
    • Mounted before cable installation
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download
    Application Where speed, simplicity, and a firm fixing base are required these self adhesive clips are ideal. Particularly suitable for use in control cabinets, telecoms equipment or domestic appliances where the use of holes, screws, or nuts and bolts is impractical or undesirable.
    Colour Natural (NA)
    Description Mount TY8G1S
    Fixation Method Screw Mounting and Adhesive
    For Ties T18 - T120
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION TY8G1S-PA66-NA
    Pack Cont. 100pcs.
    Package Content packed in pcs.
    Product Family TY-Series longish design
    Product Group Cable tie mounts
    Short Description Screw Fixing Cable Tie Mount self adhesive 32x25 natural
    Type TY8G1S
    Fixing Hole Centres (F) 15.6mm
    Fixing Hole Centres (F2) 14.0mm
    Height (H) 5.45mm
    Length (L) 32.0mm
    Strap Width max. (G) 8.0mm
    Thickness of Adhesive (TA) nom. 0.8
    Weight/Unit 0.002561kg
    Width (W) 25.0mm
    for Hole ∅ (FH) 3.2 mm
    Adhesive Acrylate with base of polyurethane foam
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2 (excluding adhesive)
    Halogen-free Yes
    Hazardous Goods No
    Nato number 5975-12-194-7077
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026122199
    Packaging 1 - Height (m) 0.03m
    Packaging 1 - Length (m) 0.24m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00137m³
    Packaging 1 - Weight (kg) 0.265129kg
    Packaging 1 - Width (m) 0.19m
    Packaging 3 - Height (m) 0.171m
    Packaging 3 - Length (m) 0.56m
    Packaging 3 - Qty 1500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0172m³
    Packaging 3 - Weight (kg) 4.196935kg
    Packaging 3 - Width (m) 0.18m
    Packaging 4 - Height (m) 1.17m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 72000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.123m³
    Packaging 4 - Weight (kg) 222.432kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
    Show all
    Self-Adhesive cable tie mounts Self-Adhesive cable tie mounts

    Self-Adhesive cable tie mounts

    HellermannTyton self-adhesive cable tie mounts are perfectly suited for cable fastening on round and angled surfaces. To save time, reduce part diversity and weight.
