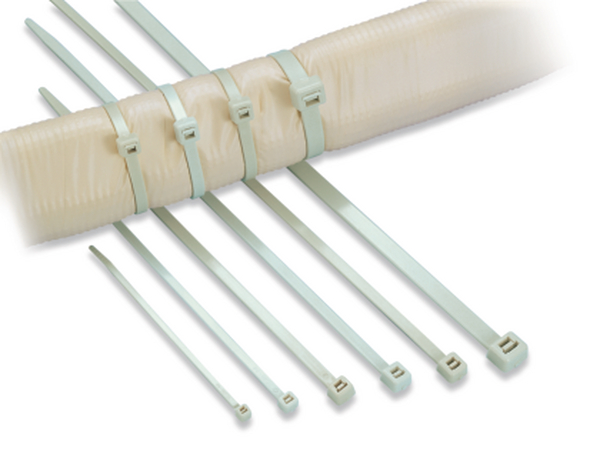

Cable tie inside serrated, 251x4.8mm, ∅1.5-65mm, beige, 100pcs.
Art.-Nr. 111-00778 | AB250-PA66HSW-BGE |  Details

    • Made of Polyamide 6.6 (PA66), heat and UV-resistance
    • For High Temperature and indoor/outdoor use
    • Available in a wide range of materials and sizes
    • High tensile strength with very low insertion force
    • Only high quality plastic is used meeting recycling targets
    • Inside serrated cable ties for a strong hold onto bundles
    • Ergonomic bent tail offers quick and simple installation
    • Easy application either manually or with an application tool
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads e-Learning
    Application AB-Series cable ties for bundling and securing of cables, pipes and hoses. These cable ties can be used for nearly all kind of applications.
    Colour Ivory (IV)
    Identification Plate Position none
    Material Polyamide 6.6, heat and UV-resistant (PA66HSW)
    PART DESCRIPTION AB250-PA66HSW-BGE
    Pack Cont. 100pcs.

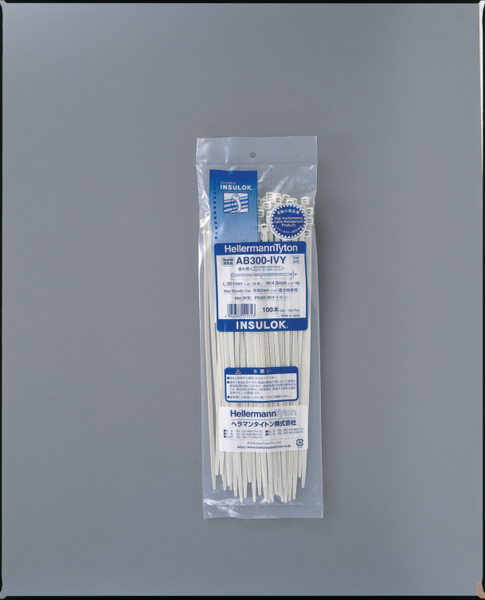

    Package Content packed in bag
    Product Family AB-Series cable ties
    Product Group Cable Ties for heat, UV-resistance and made of Polyamide 6.6 (PA66)
    Releasable Closure (Yes/No) No
    Type AB250
    Variant Inside Serrated
    Bundle Diameter max (metric) 65mm
    Bundle ∅ 1.5-65mm
    Bundle ∅ min. 1.5mm
    Cable Tie Head Height (metric) 5mm
    Cable Tie Head Length (metric) 9mm
    Cable Tie Head Width (metric) 8.8mm
    Length (L) 251mm
    Min.Tensile Strength 270N
    Thickness (T) 1.5mm
    Width (W) 4.8mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    GTIN-13 / EAN 4944387110319
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
