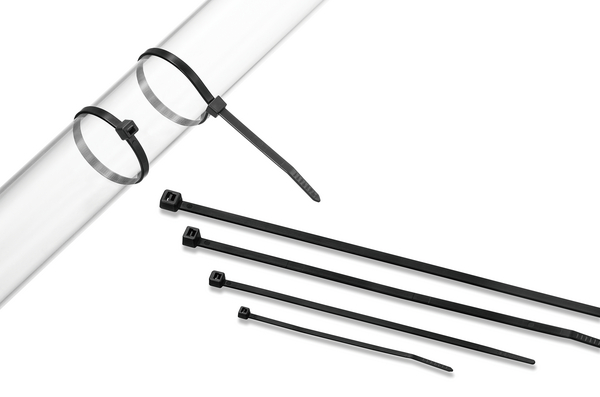

Cable tie inside serrated, 100.0x2.5mm, ∅4-22mm, black, 100pcs.
Art.-Nr. 111-90011 | BDG100-PLAW-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads e-Learning
    Application Cables ties made of Polylactic acid, a sustainable bioplastic from vegetable oil contributes to the formation of a recycling-oriented society. When treated in an appropriate environment such as a composting device, hydrolysis due to the effects of temperature and humidity, followed by biodegradation by microorganisms, and finally almost all of it decomposes into water and carbon dioxide.
    Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
    Colour Black (BK)
    Identification Plate Position none
    Material Polylactic Acid, weather-resistant (PLAW)
    PART DESCRIPTION BDG100-PLAW-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family BDG-series
    Product Group Biodegradable cable ties
    Releasable Closure (Yes/No) No
    Type BDG100
    Variant Inside Serrated
    Bundle Diameter max (metric) 22mm
    Bundle ∅ 4-22mm
    Bundle ∅ min. 4mm
    Cable Tie Head Height (metric) 3.5mm
    Cable Tie Head Length (metric) 4.8mm
    Cable Tie Head Width (metric) 4.8mm
    Length (L) 100.0mm
    Min.Tensile Strength 80N
    Thickness (T) 1.1mm
    Width (W) 2.5mm
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    GTIN-13 / EAN 4944387128574
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
