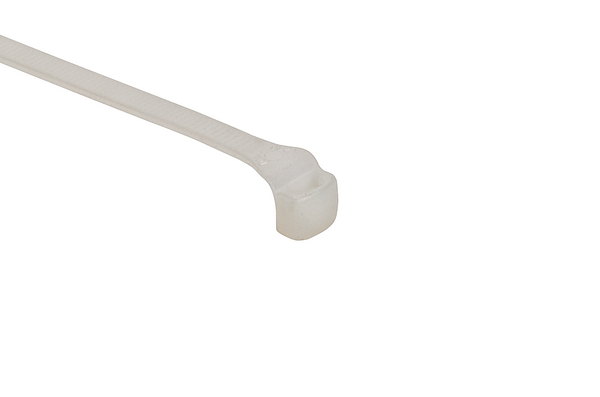

Cable tie outside serrated, 194.6x4.8mm, ∅4.0-51.0mm, natural, 100pcs.
Art.-Nr. 112-00063 | LPT50R-PA66-NA |  Details

Compact, contoured head fits tight spaces and protects adjacent bundles.

    • Help bundle wires neatly to make wire harnesses with smaller diameters.
    • Head structure that leaves little of the tail exposed after the cable tie is cut off.
    • Head designed not to get caught on surrounding parts and wires.
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application These ties are particularly useful in areas with restricted space. Due to their low profile head the coloured cable ties are ideal for securing foam padding to playgroud equipment. This ensures that there are no sharp edges and ultimate safety.
    Colour Natural (NA)
    Description HellermannTyton Low Profile Cable Ties feature a compact, contoured head designed to use less space in confined areas and reduce protrusions that might otherwise interfere with or damage adjacent wire insulation and hoses. The outside serration provides a smooth inside surface to further minimize indentation or damage to soft bundles while offering high tensile strength and low insertion force.
    Identification Plate Position none
    Key product features for narrow space
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION LPT50R-PA66-NA
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family Low Head Tie
    Product Group Cable ties with low profile head
    Tie Closure plastic pawl
    Type LPT50R
    Variant Outside Serrated
    Bundle Diameter max (metric) 51.0mm
    Bundle ∅ 4.0-51.0mm
    Bundle ∅ min. 4.0mm
    Length (L) 194.6mm
    Min.Tensile Strength 223N
    Width (W) 4.8mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Halogen-free Yes
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026714509
    Packaging 1 - Weight (kg) 0.1kg
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
