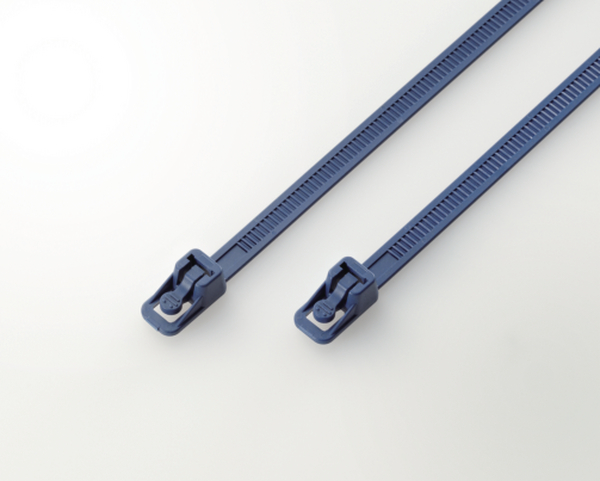

Cable tie inside serrated, 150x4.7mm, ∅5-36mm, blue, 100pcs.
Art.-Nr. 115-00167 | MCTSORF150-S-PA66MD-BU |  Details

    • Total metal dispersion throughout the tie

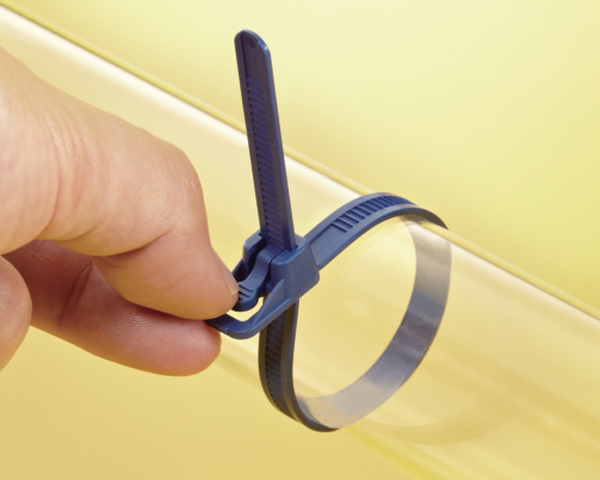

    • Can be re-opened and re-used
    • Available in different sizes
    • Supports quality processes around the production of food stuffs
    • Blue colour most common for easy visual detection
    • Greatly reduces risk of contamination

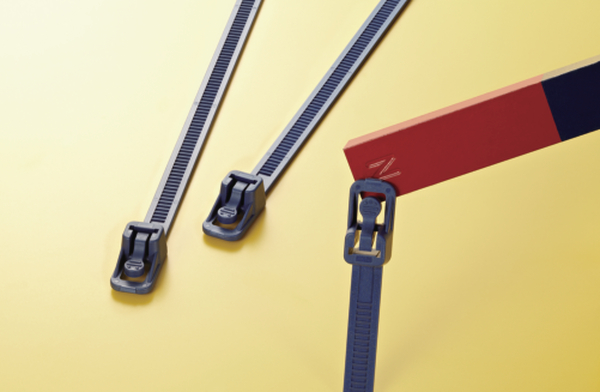

    • Magnetic detectable (detection level depending on specific application)
    • MCTS ties have very good corrosion resistance
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Our MCTS cable ties have been specifically developed to be used in the food & beverage as well as in the pharmaceutical industry. A unique manufacturing process in combination with a unique material formulation is offering outstanding performance in line with high corrosion resistance. This makes the MCTS an ideal product even for very humid environments. In addition the MCTSORF ties do have a releasable function thus they can be re-opened and re-used.
    Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
    Colour Blue (BU)
    Fixation Method Releasable Cable Tie
    Identification Plate Position none
    Key product features detectable
    Material Polyamide 6.6, metal detectable (PA66MD)
    PART DESCRIPTION MCTSORF150-S-PA66MD-BU
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family MCTS-Series releasable
    Product Group Cable ties for food industry, detectable, corrosion resistant, re-usable
    Releasable Closure (Yes/No) Yes
    Tie Closure plastic pawl
    Type MCTSORF150-S
    Variant Inside Serrated
    Bundle Diameter max (metric) 36mm
    Bundle ∅ 5-36mm
    Bundle ∅ min. 5mm
    Length (L) 150mm
    Min.Tensile Strength 90N
    Thickness (T) 1.0mm
    Width (W) 4.7mm
    Halogen-free Yes
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    GTIN-13 / EAN 4944387118728
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
