21/11/2024

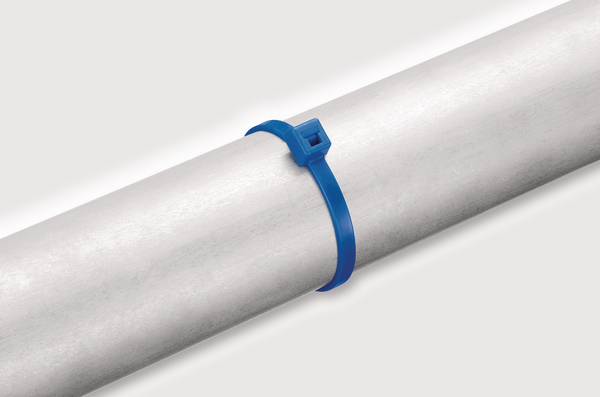

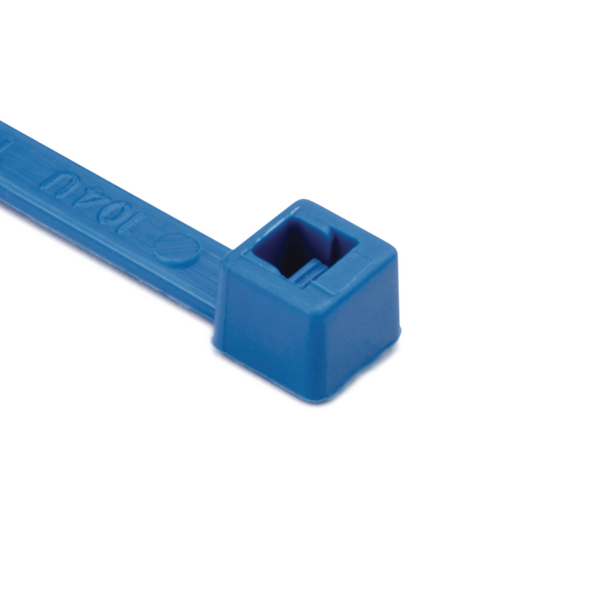

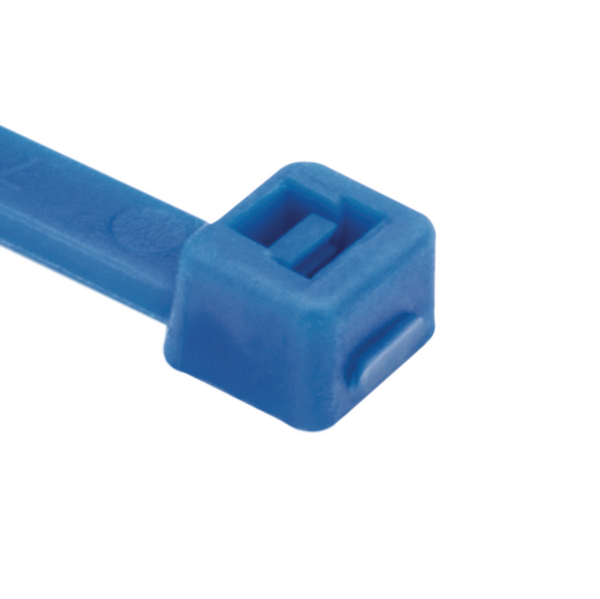

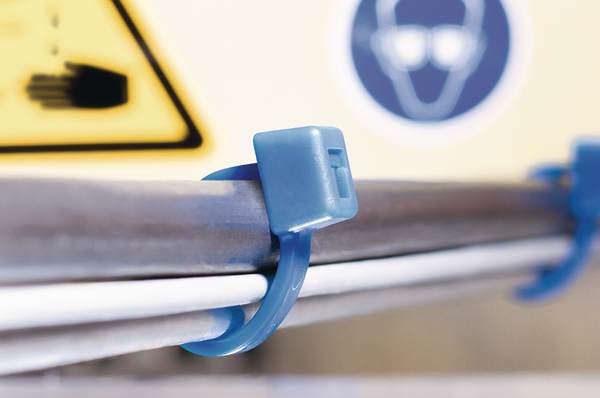

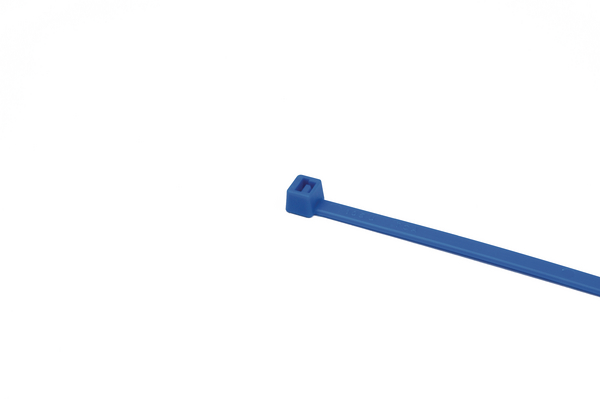

Cable tie inside serrated, 150.0x3.5mm, ∅3.0-36.0mm, blue, 100pcs.
Art.-Nr. 111-00698 | T30R-E/TFE-BU |  Details

ETFE cable ties provide excellent resistance to chemicals, radiation, high temperatures and UV exposure.

    • Available in a wide range of materials and sizes
    • High tensile strength with very low insertion force
    • Only high quality plastic is used meeting recycling targets
    • Inside serrated cable ties for a strong hold onto bundles
    • Ergonomic bent tail offers quick and simple installation
    • Easy application either manually or with an application tool
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads e-Learning
    Application T-Series cable ties for bundling and securing of cables, pipes and hoses. These cable ties can be used for nearly all kind of applications.
    Application Method Quick, simple fixing by hand or with HellermannTyton tensioning tools
    Colour Blue (BU)
    Identification Plate Position none
    Material Ethylene Tetrafluoroethylene (E/TFE)
    PART DESCRIPTION T30R-E/TFE-BU
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family T-Series in E/TFE (Tefzel®)
    Product Group Cable Ties for higher chemical resistance for temperatures up to +170 °C in Ethylentetrafluorineethylene
    Releasable Closure (Yes/No) No
    Short Description Cable Tie 150x3.5 E/TFE blue
    Tie Closure plastic pawl
    Type T30R
    Variant Inside Serrated
    Bundle Diameter max (metric) 36.0mm
    Bundle ∅ 3.0-36.0mm
    Bundle ∅ min. 3.0mm
    Cable Tie Head Height (metric) 4.0mm
    Length (L) 150.0mm
    Min.Tensile Strength 133.3N
    Thickness (T) 1.2mm
    Weight/Unit 0.001151kg
    Width (W) 3.5mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V0
    Hazardous Goods No
    Operating Temperature -80 °C to +170 °C
    ROHS compliant Yes
    Specifications
    Specifications ANSI/UL 1565, ANSI/UL 62275
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL OCD link Link
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL-File Number E64962
    UV-Stabilised No
    Country of Origin JP
    Customs Number 39269097
    GTIN-13 / EAN 4944387127416
    Packaging 1 - Height (m) 0.02m
    Packaging 1 - Length (m) 0.23m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0006m³
    Packaging 1 - Weight (kg) 0.1151kg
    Packaging 1 - Width (m) 0.13m
    Packaging 3 - Height (m) 0.21m
    Packaging 3 - Length (m) 0.455m
    Packaging 3 - Qty 10000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0296m³
    Packaging 3 - Weight (kg) 11.75kg
    Packaging 3 - Width (m) 0.31m
    Packaging 4 - Height (m) 1.194m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 200000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.146m³
    Packaging 4 - Weight (kg) 256.0kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
    Show all
