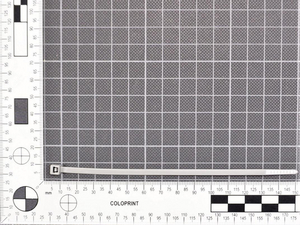

Cable tie inside serrated, 150.0x3.5mm, ∅1.5-35.0mm, grey, 100pcs.
Art.-Nr. 111-00968
| T30R-PA46-GY
|
Details
- Cable tie for high temperature applications up to +150 °C (5000 h) and +195 °C (500 h)
- Available in different sizes to cover various bundle diameters
- Low smoke generation in the event of a fire
- PA46 is a moisture sensitive material
- Inside serrated cable tie offers strong hold around bundles
- Easy application either manually or with an application tool
- Operating temperature (long-term) up to +130 °C
More products in this product group:
| Application | These inside serrated cable ties are made from Polyamide 4.6 (PA46). They can be applied in environments with temperatures up to +195 °C (for 500 hours) which makes them suitable for applications where a broader temperature range is required. Polyamide 4.6 is a well-known material in the automotive, railway or white goods area. An application tool is recommended to ensure greater process reliability while installing cable ties. |
| Application Method | Quick, simple fixing by hand or with HellermannTyton tensioning tools |
| Colour | Grey (GY) |
| Identification Plate Position | none |
| Material | Polyamide 4.6 (PA46) |
| PART DESCRIPTION | T30R-PA46-GY |
| Pack Cont. | 100pcs. |
| Package Content packed in | bag |
| Product Family | T-Series in PA46 |
| Product Group | Cable Ties for temperatures up to + 195 °C (500 h) in Polyamide 4.6 |
| Releasable Closure (Yes/No) | No |
| Short Description | Cable Tie 150x3.5 grey |
| Tie Closure | plastic pawl |
| Type | T30R |
| Variant | Inside Serrated |
Download
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous Goods | No |
| Limited Fire Hazard | Yes |
| Operating Temperature | -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h) |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| UV-Stabilised | No |
|
|
|
| Country of Origin | SG |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026298207 |
| Packaging 1 - Height (m) | 0.025m |
| Packaging 1 - Length (m) | 0.23m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00081m³ |
| Packaging 1 - Weight (kg) | 0.0782kg |
| Packaging 1 - Width (m) | 0.14m |
| Packaging 2 - Height (m) | 0.216m |
| Packaging 2 - Length (m) | 0.3048m |
| Packaging 2 - Qty | 3000 |
| Packaging 2 - Type | carton |
| Packaging 2 - Volume (m³) | 0.0176m³ |
| Packaging 2 - Weight (kg) | 2.496kg |
| Packaging 2 - Width (m) | 0.267m |
| Packaging 3 - Height (m) | 0.218m |
| Packaging 3 - Length (m) | 0.599m |
| Packaging 3 - Qty | 12000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0522m³ |
| Packaging 3 - Weight (kg) | 10.734kg |
| Packaging 3 - Width (m) | 0.4m |
| Packaging 4 - Height (m) | 1.234m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 240000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.185m³ |
| Packaging 4 - Weight (kg) | 235.68kg |
| Packaging 4 - Width (m) | 0.8m |
