25/12/2024

Cable tie inside serrated, 146.0x3.5mm, ∅1.5-35.0mm, black, 100pcs.
Art.-Nr. 111-02222 | T30R-PA66HS-BK |  Details

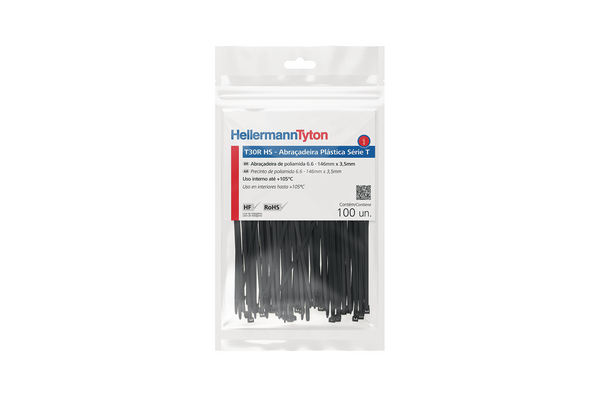

T30R HS BK Blister

    • Heat stabilized cable ties (PA66HS) for temperatures up to +105 °C
    • Available in a wide range of sizes to cover almost every application
    • Inside serration provides a strong hold onto bundles
    • Manual and/or pneumatic tools available for greater process reliability
    • Commonly offered in natural and black, other colors available on request
    Show more
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads e-Learning
    Application These inside serrated cable ties are made from heat stabilized Polyamide 6.6 (PA66HS). They can be applied in environments with continuous temperatures up to +105 °C. T-Series cable ties can be easily installed by hand or using an application tool to ensure consistency of installation.
    Application Method Quick, simple fixing by hand or with HellermannTyton tensioning tools
    Colour Black (BK)
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T30R-PA66HS-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Group Cable Ties for temperatures up to + 105 °C (heat stabilised)
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T30R
    Variant Inside Serrated
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 1.5-35.0mm
    Bundle ∅ min. 1.5mm
    Length (L) 146.0mm
    Min.Tensile Strength 135N
    Thickness (T) 1.1mm
    Width (W) 3.5mm
    Flammability UL 94 V2
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin BR
    GTIN-13 / EAN 7890176086884
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
