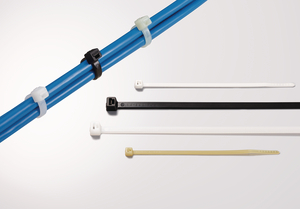

Cable tie inside serrated, 150x3.5mm, ∅1.5-35.0mm, natural, 100pcs.
Art.-Nr. 111-03259
| T30R-PA66HS-NA
|
Details
- Heat stabilized cable ties (PA66HS) for temperatures up to +105 °C
- Available in a wide range of sizes to cover almost every application
- Inside serration provides a strong hold onto bundles
- Manual and/or pneumatic tools available for greater process reliability
- Commonly offered in natural and black, other colors available on request
More products in this product group:
| Application | These inside serrated cable ties are made from heat stabilized Polyamide 6.6 (PA66HS). They can be applied in environments with continuous temperatures up to +105 °C. T-Series cable ties can be easily installed by hand or using an application tool to ensure consistency of installation. |
| Application Method | Quick, simple fixing by hand or with HellermannTyton tensioning tools |
| Colour | Natural (NA) |
| Identification Plate Position | none |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| PART DESCRIPTION | T30R-PA66HS-NA |
| Pack Cont. | 100pcs. |
| Package Content packed in | pcs. |
| Product Family | T-Series in PA66HS natural |
| Product Group | Cable Ties for temperatures up to + 105 °C (heat stabilised) |
| Releasable Closure (Yes/No) | No |
| Short Description | Cable Tie 150x3.5 HS-natural |
| Tie Closure | plastic pawl |
| Type | T30R |
| Variant | Inside Serrated |
Download
| Designation as per VG-Norm | VG 95387 T04 A 208 L |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Nato number | 5975-12-334-9197, 5975-14-586-0158 |
| Operating Temperature | -40 °C to +105 °C, (+145 °C, 500 h) |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | ANSI/UL 62275, csa-C22.2 no. 62275, VG 95387 Part 4 |
| UL OCD link | Link |
| UL Recognized (US and Canada) | Yes |
| UL Type | 11 |
| UL-File Number | E85319 |
| UV-Stabilised | No |
|
|
|
| Country of Origin | SG |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026104867 |
| Packaging 1 - Height (m) | 0.017m |
| Packaging 1 - Length (m) | 0.19m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00032m³ |
| Packaging 1 - Weight (kg) | 0.070001kg |
| Packaging 1 - Width (m) | 0.1m |
| Packaging 2 - Height (m) | 0.188m |
| Packaging 2 - Length (m) | 0.136m |
| Packaging 2 - Qty | 3000 |
| Packaging 2 - Type | box |
| Packaging 2 - Volume (m³) | 0.0096m³ |
| Packaging 2 - Weight (kg) | 2.24003kg |
| Packaging 2 - Width (m) | 0.377m |
| Packaging 3 - Height (m) | 0.218m |
| Packaging 3 - Length (m) | 0.599m |
| Packaging 3 - Qty | 12000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0522m³ |
| Packaging 3 - Weight (kg) | 9.71012kg |
| Packaging 3 - Width (m) | 0.4m |
| Packaging 4 - Height (m) | 1.234m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 240000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.185m³ |
| Packaging 4 - Weight (kg) | 215.2kg |
| Packaging 4 - Width (m) | 0.8m |
