Cable tie inside serrated, 382x4.7mm, ∅5.0-105mm, blue, 100pcs.
Art.-Nr. 111-01469 | T50L-E/TFE-BU |  Details

The Allrounder: T-Series cable ties can be used for almost any type of application.

    • Available in a wide range of materials and sizes
    • High tensile strength with very low insertion force
    • Only high quality plastic is used meeting recycling targets
    • Inside serrated cable ties for a strong hold onto bundles
    • Ergonomic bent tail offers quick and simple installation
    • Easy application either manually or with an application tool
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads e-Learning
    Application T-Series cable ties for bundling and securing of cables, pipes and hoses. These cable ties can be used for nearly all kind of applications.
    Application Method Quick, simple fixing by hand or with HellermannTyton tensioning tools
    Colour Aquamarine (AE)
    Identification Plate Position none
    Material Ethylene Tetrafluoroethylene (E/TFE)
    PART DESCRIPTION T50L-E/TFE-BU
    Pack Cont. 100pcs.
    Product Family T-Series in E/TFE
    Product Group Cable Ties for higher chemical resistance for temperatures up to +170°C in Ethylentetrafluorineethylene
    Releasable Closure (Yes/No) No
    Short Description Cable Tie 382x4.7 mm, E/TFE, aquamarine
    Tie Closure plastic pawl
    Type T50L
    Variant Inside Serrated
    Bundle Diameter max (metric) 105mm
    Bundle ∅ 5.0-105mm
    Bundle ∅ min. 5.0mm
    Cable Tie Head Height (metric) 5.9mm
    Cable Tie Head Length (metric) 7.2mm
    Cable Tie Head Width (metric) 8.1mm
    Length (L) 382mm
    Min.Tensile Strength 222.3N
    Strap Width max. (G) 0.32"
    Thickness (T) 1.7mm
    Weight/Unit 0.0027kg
    Width (W) 4.7mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V0
    Hazardous Goods No
    Operating Temperature -80 °C to +170 °C
    ROHS compliant Yes
    Specifications
    Specifications STD78750
    UV-Stabilised No
    Country of Origin JP
    Customs Number 39269097
    GTIN-13 / EAN 4944387103274
    Packaging 1 - Height (m) 0.02m
    Packaging 1 - Length (m) 0.5m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0015m³
    Packaging 1 - Weight (kg) 0.27kg
    Packaging 1 - Width (m) 0.15m

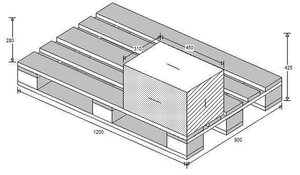

    Packaging 3 - Height (m) 0.28m
    Packaging 3 - Length (m) 0.45m
    Packaging 3 - Qty 2500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0391m³
    Packaging 3 - Weight (kg) 7.09kg
    Packaging 3 - Width (m) 0.31m

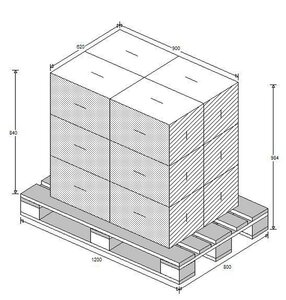

    Packaging 4 - Height (m) 1.264m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 50000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.213m³
    Packaging 4 - Weight (kg) 162.8kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
