Cable tie inside serrated, 202.0x4.6mm, ∅1.5-50.0mm, red, 100pcs.
Art.-Nr. 111-00468 | T50R-PA66W-RD |  Details

Head design guarantees high tensile strength and a low insertion force.

    • UV-resistant black cable tie available in a wide range of sizes
    • Made from 100 % high quality plastic, allows for good recycling
    • Inside serration for a strong hold onto bundles
    • Easy application either manually or with a processing tool
    • Simple to insert due to bent tail
    Show more
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads e-Learning
    Application These inside serrated cable ties are made of UV-resistant Polyamide 6.6 (PA66W) and thus suitable for outdoor applications. UV stabilized cable ties resist UV radiation for a considerably longer period compared to standard PA66 cable ties. They can easily be used for bundling and securing cables, pipes and hoses especially in outdoor areas.
    Application Method Quick, simple fixing by hand or with HellermannTyton tensioning tools
    Colour Red (RD)
    Identification Plate Position none
    Material Polyamide 6.6, UV-resistant (PA66W)
    PART DESCRIPTION T50R-PA66W-RD

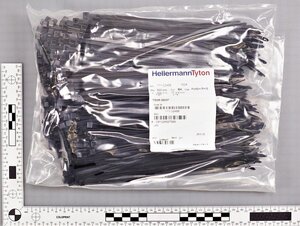

    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family T-Series in PA66W black
    Product Group Cable Ties for outdoor use (UV-resistant)
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50R
    Variant Inside Serrated
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 1.5-50.0mm
    Bundle ∅ min. 1.5mm
    Cable Tie Head Height (metric) 5.9mm
    Cable Tie Head Length (metric) 7.3mm
    Cable Tie Head Width (metric) 7.6mm
    Length (L) 202.0mm
    Min.Tensile Strength 225N
    Strap Width max. (G) 0.3"
    Thickness (T) 1.2mm
    Width (W) 4.6mm
    CE Certification Yes
    CSA Certified No
    Flammability UL 94 V2
    Halogen-free Yes
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Specifications UL-ZODZ2.E64139
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US) Yes
    UL Type 11
    UL-File Number E64139
    UV-Stabilised Yes
    Country of Origin US
    GTIN-13 / EAN 4031026418162
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
