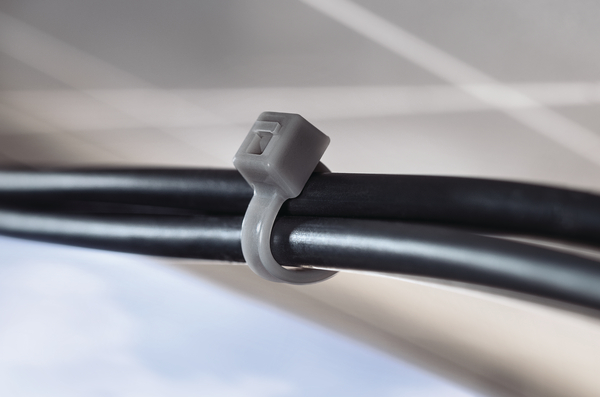

Cable tie inside serrated, 202.0x4.7mm, ∅8.0-50.0mm, grey, 100pcs.
Art.-Nr. 111-02390
| T50R-PVDF-GY
|
Details
- Available in a wide range of materials and sizes
- High tensile strength with very low insertion force
- Only high quality plastic is used meeting recycling targets
- Inside serrated cable ties for a strong hold onto bundles
- Ergonomic bent tail offers quick and simple installation
- Easy application either manually or with an application tool
More products in this product group:
| Application | T-Series cable ties for bundling and securing of cables, pipes and hoses. These cable ties can be used for nearly all kind of applications. |
| Application Method | Quick, simple fixing by hand or with HellermannTyton tensioning tools |
| Colour | Grey (GY) |
| Identification Plate Position | none |
| Material | Polyvinylidene Fluoride (PVDF) |
| PART DESCRIPTION | T50R-PVDF-GY |
| Pack Cont. | 100pcs. |
| Package Content packed in | bag |
| Product Family | T-50R in PVDF, grey |
| Product Group | Cable Ties inside serrated |
| Releasable Closure (Yes/No) | No |
| Short Description | PVDF Cable Tie, 8" Long, 50lb Tensile Strength, PVDF, Gray, 100/pkg |
| Tie Closure | plastic pawl |
| Type | T50R |
| Variant | Inside Serrated |
|
|
| Bundle Diameter max (metric) | 50.0mm |
| Bundle ∅ | 8.0-50.0mm |
| Bundle ∅ min. | 8.0mm |
| Cable Tie Head Height (metric) | 5.9mm |
| Cable Tie Head Length (metric) | 7.3mm |
| Cable Tie Head Width (metric) | 7.6mm |
| Length (L) | 202.0mm |
| Min.Tensile Strength | 225N |
| Strap Width max. (G) | 0.3" |
| Thickness (T) | 1.2mm |
| Weight/Unit | 0.00273kg |
| Width (W) | 4.7mm |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V0 |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +140 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | Yes |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026671819 |
| Packaging 1 - Height (m) | 0.025m |
| Packaging 1 - Length (m) | 0.365m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0014m³ |
| Packaging 1 - Weight (kg) | 0.273001kg |
| Packaging 1 - Width (m) | 0.153m |
| Packaging 3 - Height (m) | 0.2159m |
| Packaging 3 - Length (m) | 0.606425m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.052m³ |
| Packaging 3 - Weight (kg) | 14.51005kg |
| Packaging 3 - Width (m) | 0.396875m |
| Packaging 4 - Height (m) | 1.224m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 75000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.175m³ |
| Packaging 4 - Weight (kg) | 238.65kg |
| Packaging 4 - Width (m) | 0.8m |
