19/11/2024

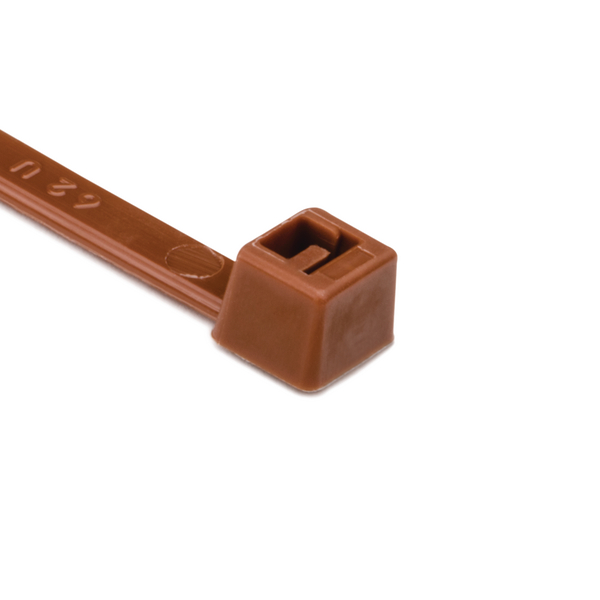

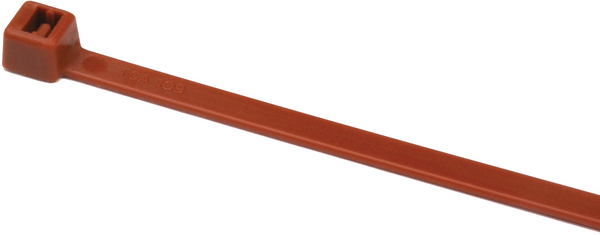

Cable tie inside serrated, 202.0x4.6mm, ∅1.5-50.0mm, brown, 100pcs.
Art.-Nr. 116-05011 | T50R-PA66-BN |  Details

Head design guarantees high tensile strength and a low insertion force.

    • Available in a wide range of materials and sizes
    • High tensile strength with very low insertion force
    • Only high quality plastic is used meeting recycling targets
    • Inside serrated cable ties for a strong hold onto bundles
    • Ergonomic bent tail offers quick and simple installation
    • Easy application either manually or with an application tool
    Show more
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    e-Learning
    Application T-Series cable ties for bundling and securing of cables, pipes and hoses. These cable ties can be used for nearly all kind of applications.
    Application Method Quick, simple fixing by hand or with HellermannTyton tensioning tools
    Colour Brown (BN)
    Identification Plate Position none
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION T50R-PA66-BN
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family T-Series in PA66 coloured
    Product Group Cable Ties Polyamide 6.6 standard
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50R
    Variant Inside Serrated
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 1.5-50.0mm
    Bundle ∅ min. 1.5mm
    Cable Tie Head Height (metric) 5.9mm
    Cable Tie Head Length (metric) 7.3mm
    Cable Tie Head Width (metric) 7.6mm
    Length (L) 202.0mm
    Min.Tensile Strength 225N
    Strap Width max. (G) 0.3"
    Thickness (T) 1.2mm
    Width (W) 4.6mm
    CE Certification Yes
    CSA Certified No
    Flammability UL 94 V2
    Halogen-free Yes
    Operating Temperature -40 °C to +85 °C
    Plenum Rating AH-2
    ROHS compliant Yes
    Specifications
    Specifications UL 62275
    UL Listed (US and Canada) Yes
    UL Listed (US and Canada) Yes
    UL OCD link Link
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) Yes
    UL-File Number E64139
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026108803
    Packaging 1 - Qty 100
    Packaging 1 - Weight (kg) 0.1300kg
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Weight (kg) 7.98kg
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
