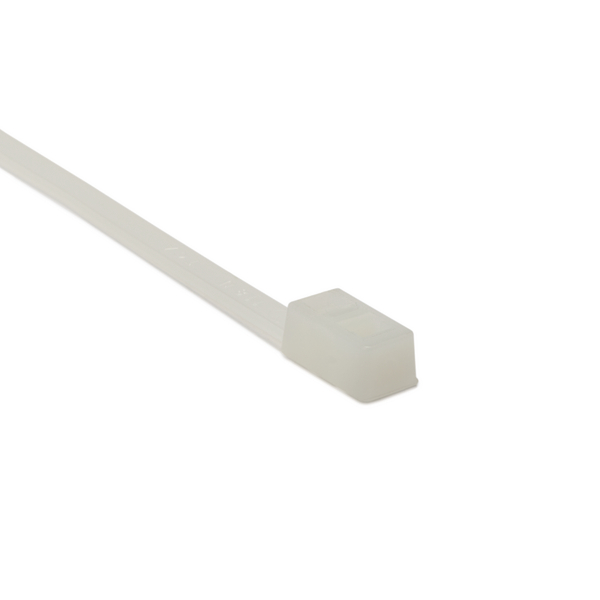

Cable tie inside serrated, 160.0x4.7mm, ∅2.0-31.0mm, natural, 1000pcs.
Art.-Nr. 117-00017 | T50SDH-PA66-NA Details

  • Possibility to separate bundles with only one cable tie
  • Cable tie with two heads creating an inside and outside serrated loop
  • Available in a wide range of materials
  • Bundles can be of different diameter
  • Maximum bundle diameter is a maximum combined bundle
  • Easy application either manually or with a processing tool
Show more

Request your individual offer now

Application Double loop head ties are ideal for separation of two cable runs without the need for additional cable ties. Additionally these ties are widely used within the packaging industry. The first loop closes and secures the bag whilst the second loop can be made into a carrying handle (subject to weight).
Colour Natural (NA)
Identification Plate Position none
Key product features for multiple routing
Material Polyamide 6.6 (PA66)
PART DESCRIPTION T50SDH-PA66-NA
Pack Cont. 1000pcs.
Package Content packed in bag
Product Family DH-Series
Product Group Cable ties for parallel routing
Releasable Closure (Yes/No) No
Type T50SDH
Variant Inside Serrated
Bundle Diameter max (metric) 31.0mm
Bundle ∅ 2.0-31.0mm
Bundle ∅ min. 2.0mm
Length (L) 160.0mm
Min. Tensile Strength 2nd loop 180.0N
Min.Tensile Strength 225N
Width (W) 4.7mm
∅ max. 1. loop 31.0mm
∅ max. 2. loops 32.0mm
CE Certification Yes
CSA Certified No
Flammability UL 94 V2
Halogen-free Yes
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL Recognized (US and Canada) Yes
UL Type 11
UL-File Number E64139
UV-Stabilised No
Country of Origin MX
GTIN-13 / EAN 4031026425337
Packaging 3 - Height (m) 0.20002499999999998m
Packaging 3 - Length (m) 0.51117499999999995m
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0318
Packaging 3 - Width (m) 0.31115m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
