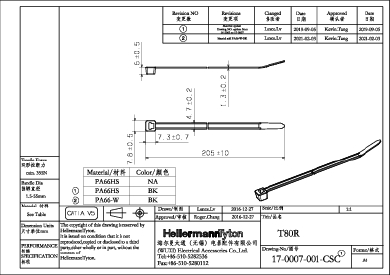

Cable tie inside serrated, 205.0x4.7mm, ∅1.5-55.0mm, natural, 100pcs.
Art.-Nr. 111-05059 | T80R-PA66HS-NA |  Details

The Allrounder: T-Series cable ties can be used for almost any type of application.

    • Available in a wide range of materials and sizes
    • High tensile strength with very low insertion force
    • Only high quality plastic is used meeting recycling targets
    • Inside serrated cable ties for a strong hold onto bundles
    • Ergonomic bent tail offers quick and simple installation
    • Easy application either manually or with an application tool
    Show more
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads e-Learning
    Application T-Series cable ties for bundling and securing of cables, pipes and hoses. These cable ties can be used for nearly all kind of applications.
    Application Method Quick, simple fixing by hand or with HellermannTyton tensioning tools
    Colour Natural (NA)
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T80R-PA66HS-NA
    Pack Cont. 100pcs.
    Package Content packed in pcs.
    Product Family T-Series in PA66HS natural
    Product Group Cable Ties for temperatures up to + 105°C (heat stabilised)
    Releasable Closure (Yes/No) No
    Short Description Cable Tie 210x4.7 HS-natural
    Tie Closure plastic pawl
    Type T80R
    Variant Inside Serrated
    Bundle Diameter max (metric) 55.0mm
    Bundle ∅ 1.5-55.0mm
    Bundle ∅ min. 1.5mm
    Length (L) 205.0mm
    Min.Tensile Strength 355N
    Thickness (T) 1.3mm
    Weight/Unit 0.0013kg
    Width (W) 4.7mm
    Designation as per VG-Norm VG 95387 T04 A 202 L
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Halogen-free Yes
    Hazardous Goods No
    Nato number 5975-12-334-9853
    Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
    ROHS compliant Yes
    Specifications
    Specifications VG 95387 Part 4
    UV-Stabilised No
    Country of Origin SG
    Customs Number 39269097
    GTIN-13 / EAN 4031026105550
    Packaging 1 - Height (m) 0.021m
    Packaging 1 - Length (m) 0.24m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00058m³
    Packaging 1 - Weight (kg) 0.150001kg
    Packaging 1 - Width (m) 0.115m
    Packaging 3 - Height (m) 0.218m
    Packaging 3 - Length (m) 0.599m
    Packaging 3 - Qty 7000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0522m³
    Packaging 3 - Weight (kg) 11.25007kg
    Packaging 3 - Width (m) 0.4m
    Packaging 4 - Height (m) 1.234m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 140000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.185m³
    Packaging 4 - Weight (kg) 246.0kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
