19/11/2024

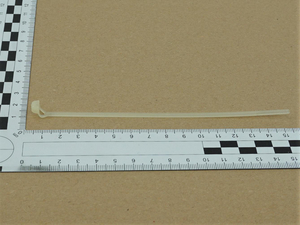

Cable tie outside serrated, 150.0x3.3mm, ∅35.0mm, natural, 100pcs.
Art.-Nr. 118-00089 | V150R-PA66HS-NA |  Details

V-Series with 90° angled head provides a practical solution due to its unique rounded design.

    • Outside serrated cable tie with smooth surface to the bundle
    • The 90° angled head perfectly fits onto the bundle
    • Rounded head design minimises the risk of damage to insulation, especially of parallel routed bundles
    • Low profile head takes up less space above the bundle
    • Easy insertion and high tensile strength
    • Easy application either manually or with a processing tool
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    e-Learning
    Application Due to its low profile head, V-Series outside serrated cable ties are perfectly suited for applications with restricted space, such as camera, alarm and automation systems (Remote I/O Systems). Where bundles are fed through a grommet or ductwork, V-Series provides a practical solution due to its unique rounded design.
    Colour Natural (NA)
    Identification Plate Position none
    Key product features for narrow bundling
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION V150R-PA66HS-NA
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family V-Series
    Product Group Cable ties with 90° angled head
    Releasable Closure (Yes/No) No
    Short Description Cable Tie with 90° angled head 150x3.3 mm, heat stabilised
    Tie Closure plastic pawl
    Type V150R
    Variant Outside Serrated
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 35.0mm
    Length (L) 150.0mm
    Min.Tensile Strength 150N
    Thickness (T) 1.1mm
    Weight/Unit 0.0007kg
    Width (W) 3.3mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    Vibrations absorbing No
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026293271
    Packaging 1 - Height (m) 0.04m
    Packaging 1 - Length (m) 0.12m
    Packaging 1 - Qty 100

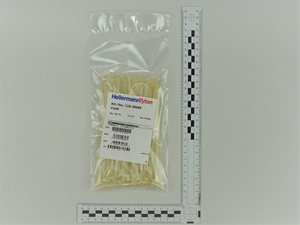

    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00127m³
    Packaging 1 - Weight (kg) 0.075526kg
    Packaging 1 - Width (m) 0.265m
    Packaging 3 - Height (m) 0.171m
    Packaging 3 - Length (m) 0.56m
    Packaging 3 - Qty 4000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0172m³
    Packaging 3 - Weight (kg) 3.24104kg
    Packaging 3 - Width (m) 0.18m
    Packaging 4 - Height (m) 1.17m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 192000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.123m³
    Packaging 4 - Weight (kg) 177.48kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
