Releasable cable tie, 140.0x7.4mm, ∅2.5-32.0mm, 225N, black, 100pcs.
Art.-Nr. 115-00046 | RF140-PA66-BK |  Details

    • Variety of colors are prepared for identification purposes
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Can be used for temporal bandling, cable identification, and as packing material.
    Colour Black (BK)
    Fixation Method Releasable Cable Tie
    Identification Plate Position none
    Key product features releasable
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION RF140-PA66-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family RF Series
    Product Group Reusable tie
    Releasable Closure (Yes/No) Yes
    Type RF140
    Bundle Diameter max (metric) 32.0mm
    Bundle ∅ 2.5-32.0mm
    Bundle ∅ min. 2.5mm
    Cable Tie Head Height (metric) 7.8mm
    Cable Tie Head Length (metric) 19mm
    Cable Tie Head Width (metric) 11.0mm

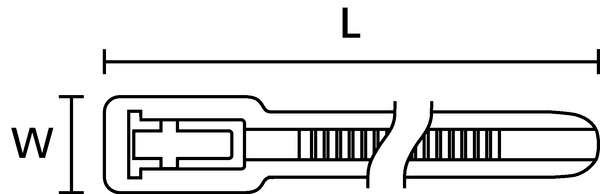

    Length (L) 140.0mm
    Min.Tensile Strength 225N
    Thickness (T) 1.2mm
    Width (W) 7.4mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    Specifications ANSI/UL 1565, ANSI/UL 62275
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL OCD link Link
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UL-File Number E64962
    UV-Stabilised No
    Country of Origin JP
    GTIN-13 / EAN 4944387216097
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
