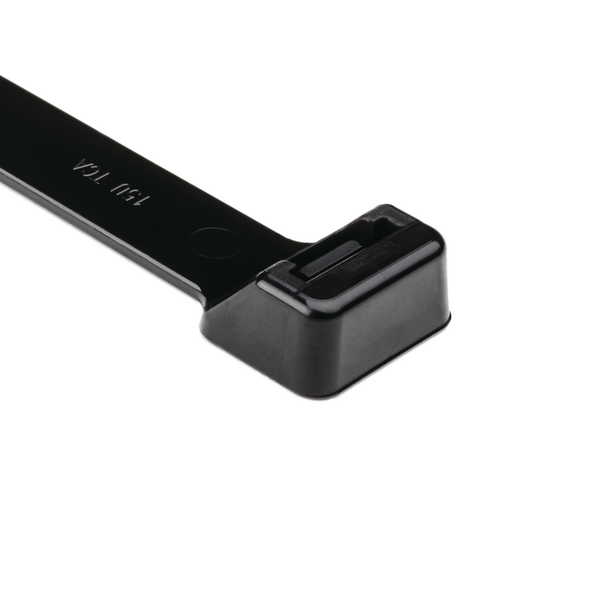

Releasable cable tie, 225.0x12.6mm, ∅25.0-50.0mm, 1115N, black, 25pcs.
Art.-Nr. 115-01200 | RT255S-PA66HIRHSUV-BK |  Details

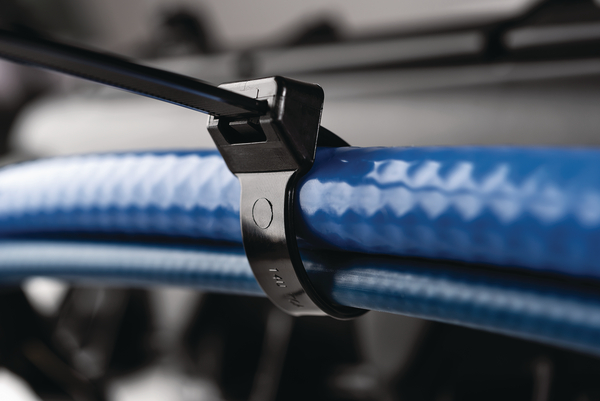

Releasable cable tie features a head design with extended pawl for quick release of bundles.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Releasable Cable Tie
    Identification Plate Position none
    Key product features releasable
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION RT255S-PA66HIRHSUV-BK
    Pack Cont. 25pcs.
    Package Content packed in bag
    Releasable Closure (Yes/No) Yes
    Type RT255S
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 25.0-50.0mm
    Bundle ∅ min. 25.0mm

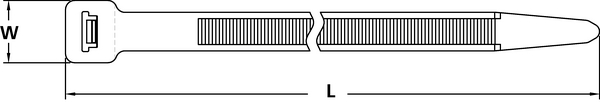

    Length (L) 225.0mm
    Min.Tensile Strength 1115N
    Width (W) 12.6mm
    CE Certification Yes
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    Specifications UL-ZODZ2.E64139
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) Yes
    UL Type 11
    UL-File Number E64139
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026421315
    Packaging 3 - Height (m) 0.20002499999999998m
    Packaging 3 - Length (m) 0.51117499999999995m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0318m³
    Packaging 3 - Weight (kg) 7.1kg
    Packaging 3 - Width (m) 0.31115m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
