Stainless steel cable tie, folding, 800.0x16.0mm, ∅185.0mm, metal, 10pcs.
Art.-Nr. 111-00329 | AMT8L16SB-SS316L-ML |  Details

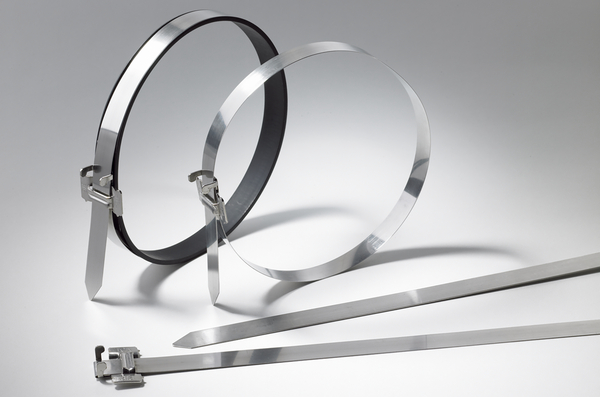

AMT Ties with and without protective profile.

    • AMT ties for heavy-duty application
    • Available in type 316 stainless steel
    • Suitable for applications with high vibrations
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads

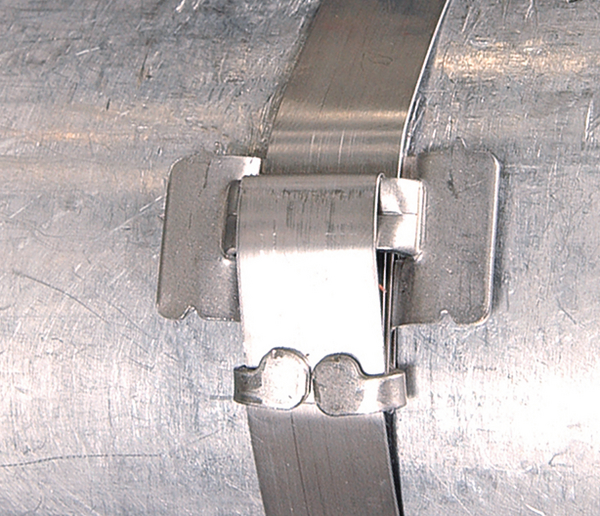

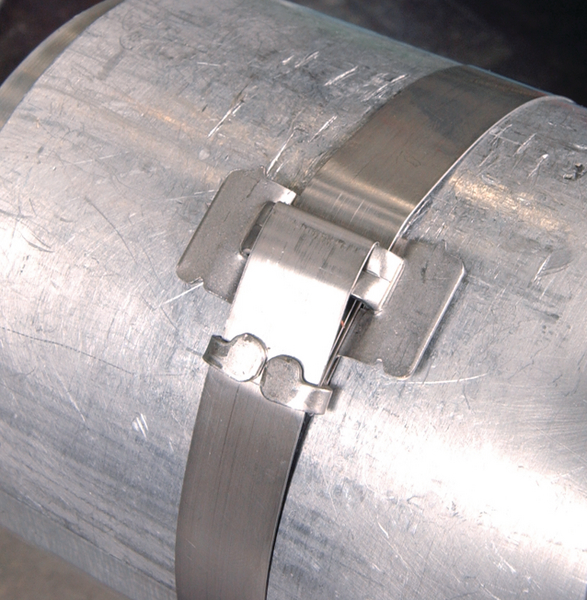

    Application The AMT tie is designed for heavy duty applications. The folding mechanism ensures that the tie will not become loose under vibration. Therefore in all safety relevant areas where vibration is normal, such as in the rail, ship or construction industry, this product is ideal.
    Colour Metal (ML)
    Identification Plate Position none
    Key product features vibration absorbing
    Material Stainless Steel (SS316L)
    PART DESCRIPTION AMT8L16SB-SS316L-ML
    Pack Cont. 10pcs.
    Package Content packed in bag
    Product Family AMT-Series, Stainless Steel 316
    Product Group Metal Banding for Heavy Duty Application
    Releasable Closure (Yes/No) No
    Short Description Stainless steel cable tie 800x16 mm, for heavy duty application
    Tie Closure folding
    Type AMT8L16SB
    Bundle Diameter max (metric) 185.0mm
    Bundle ∅ 185.0mm

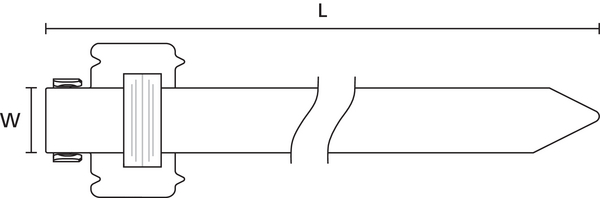

    Length (L) 800.0mm
    Min.Tensile Strength 2500N
    Thickness (T) 0.4mm
    Weight/Unit 0.001kg
    Width (W) 16.0mm
    ELV compliant (Article 4 - 2) YES
    Halogen-free Yes
    Hazardous Goods No
    Limited Fire Hazard Yes
    Operating Temperature -80 °C to +538 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 73269098
    GTIN-13 / EAN 5022660300127
    Packaging 1 - Height (m) 0.03m
    Packaging 1 - Length (m) 0.17m
    Packaging 1 - Qty 10
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0006m³
    Packaging 1 - Weight (kg) 0.010001kg
    Packaging 1 - Width (m) 0.118m
    Packaging 3 - Height (m) 0.115m
    Packaging 3 - Length (m) 0.91m
    Packaging 3 - Qty 200
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0272m³
    Packaging 3 - Weight (kg) 0.7kg
    Packaging 3 - Width (m) 0.26m
    Packaging 4 - Height (m) 1.179m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 5400
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.132m³
    Packaging 4 - Weight (kg) 39.9kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
