For hard, smooth surface applications, we recommend the use of our LFPC protective channels.

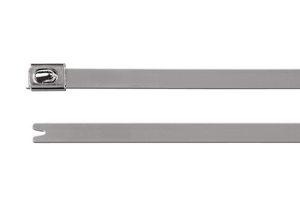

Stainless steel cable tie, ball bearing lock, 521.0x4.6mm, ∅12.0-152.0mm, metal, 100pcs.
Art.-Nr. 111-93209 | MBT20S-SS316L-ML |  Details

Stainless steel cable tie strap features a self locking, ball bearing mechanism that assures high tensile strength and easy insertion.

    • MBT cable ties made from stainless steel 316L
    • Non-releasable locking feature
    • Corrosion resistant
    • Weather resistant
    • Outstanding chemical resistance
    • High temperature resistant
    • Non-burning
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Metal ties are predestined for all areas with requirements for high holding force, reliability and fire resistance. The MBT range of stainless steel cable ties can be used in chemical industry and on oil platform as well as in mass transit, shipbuilding and mining industry. MBT ties are also suitable for machine building, apparatus construction and in the outside area of radio technology. Additionally MBT ties are a good solution to fix lighting in theatres and exhibition halls.
    Colour Metal (ML)
    Identification Plate Position none
    Internet Customer Notice For hard, smooth surface applications, we recommend the use of our LFPC protective channels.
    Key product features vibration absorbing
    Material Stainless Steel (SS316L)
    PART DESCRIPTION MBT20S-SS316L-ML
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family MBT-Series, stainless steel 316L
    Product Group Cable ties with ball-lock
    Releasable Closure (Yes/No) No
    Short Description Metal Cable Tie with Ball-Lock 521x4.6 mm
    Tie Closure ball bearing lock
    Type MBT20S
    Variant Not Serrated
    Bundle Diameter max (metric) 152.0mm
    Bundle ∅ 12.0-152.0mm
    Bundle ∅ min. 12.0mm
    Length (L) 521.0mm
    Min.Tensile Strength 900N
    Thickness (T) 0.3mm
    Weight/Unit 0.0061kg
    Width (W) 4.6mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability non-burning
    Halogen-free Yes
    Hazardous Goods No
    Limited Fire Hazard Yes
    Operating Temperature -80 °C to +538 °C
    ROHS compliant Yes
    Specifications
    Specifications IEC 60092, IEC 62275, IEC 62275:2018
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin GB
    Customs Number 73269098
    GTIN-13 / EAN 5022660020636
    Packaging 1 - Height (m) 0.035m
    Packaging 1 - Length (m) 0.389m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00123m³
    Packaging 1 - Weight (kg) 0.610001kg
    Packaging 1 - Width (m) 0.09m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
