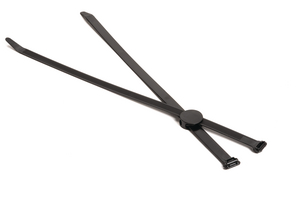

Fixing tie for cable bundles, inside serrated, ∅10.0-100.0mm, black, 1000pcs.
Art.-Nr. 156-02795 | CSCX120RX2-PA66HS/PA66HIRHS-BK |  Details

T50RCOUPLER for parallel routing.

    • Pre-assembled 2-piece fixing tie with coupler
    • Cable tie head can be moved after bundling
    • Easy addition of cables after assembly
    • For parallel routing of bundles that can be twisted 90° even after installation
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Description The Coupler is the simple way to connect two cable ties for a parallel routing of two bundles. His special design allows the ties 90 degrees of rotation. This is ideal for all applications where the cable, pipe or hose should move flexible in relation to the fixing point. The Coupler can be used with one or two cable ties. This allows easily subsequent installation or replacements of further cables, pipes or hose.
    Identification Plate Position none
    Key product features for multiple routing
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CSCX120RX2-PA66HS/PA66HIRHS-BK
    Pack Cont. 1000pcs.
    Package Content packed in bag
    Product Family twistable up to 90°
    Product Group 2-piece fixing ties for parallel separation
    Tie Closure plastic pawl

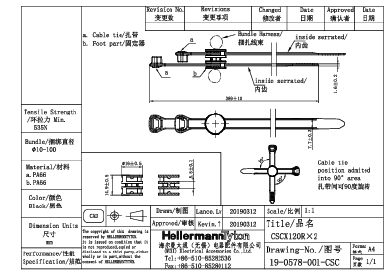

    Type CSCX120RX2
    Variant Inside Serrated
    Bundle Diameter max (metric) 100.0mm
    Bundle ∅ 10.0-100.0mm
    Bundle ∅ min. 10.0mm
    Height (H) 14.9mm
    Length (L) 369.0mm
    Min.Tensile Strength 535N
    Width (W) 7.7mm
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    GTIN-13 / EAN 4031026631790
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
