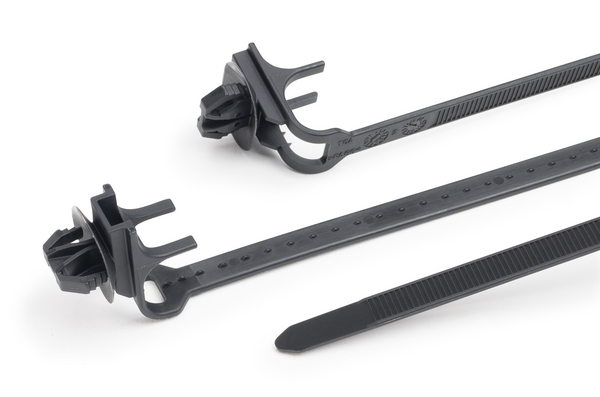

Fixing tie for hole (oval), ∅10-30mm, black, 2400pcs.
Art.-Nr. 156-02976 | CTOS198DAH62x122-PA66HS/PA66-BK |  Details

    • Easy to install without the need for a tool
    • Arrowhead simply locks into place
    • Disc adjusts tie for pressures from various directions and minimises access of dust and dirt
    • Cable tie head always situated in a defined position
    • Versions for oval holes feature anti-twist protection
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application With a diverse range of fixing possibilities are ideal for use in many different industries, including automotive, aerospace and panel building.
    Colour Black (BK)
    Fixation Method Arrowhead for oval holes
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6 (PA66)
    PART DESCRIPTION CTOS198DAH62x122-PA66HS/PA66-BK
    Pack Cont. 2400pcs.
    Package Content packed in bag
    Product Family for oval holes
    Product Group 1-piece fixing ties with arrowhead, with disc
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type CTOS198DAH62x122
    Bundle Diameter max (metric) 30mm
    Bundle ∅ 10-30mm
    Bundle ∅ min. 10mm
    Fixing Hole Shape Oval
    Weight/Unit 0.0045kg
    for Hole ∅ (FH) 6.2 x 12.2 mm
    for Panel Thickness min - max 0.7 - 3 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 4031026640204
    Packaging 1 - Length (m) 0.7m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 2.3016kg
    Packaging 1 - Width (m) 0.43m
    Packaging 3 - Height (m) 0.538m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.1213m³
    Packaging 3 - Weight (kg) 10.3064kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.22m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 16000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.171m³
    Packaging 4 - Weight (kg) 103.464kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
