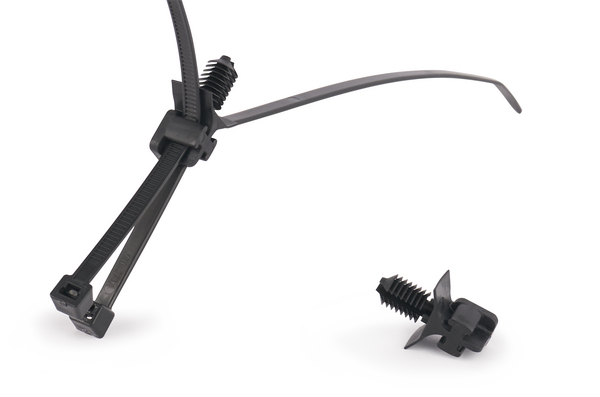

Fixing tie for hole (round), outside serrated, ∅4.0-45.0mm, black, 250pcs.
Art.-Nr. 156-02972 | DT50RDHFT6XLG-PA66HS/PA66HIRHS-BK |  Details

DT50RDHFT6XLG

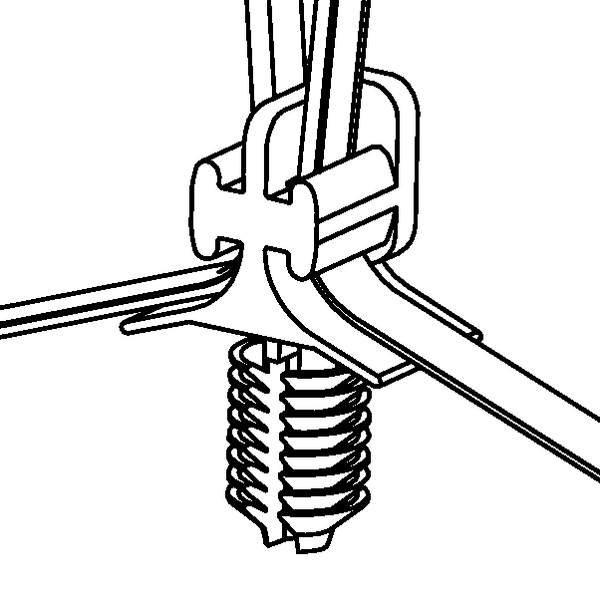

    • Pre-assembled 2-piece fixing tie with fir tree foot part
    • Cable tie head can be moved after bundling
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Description These two-piece fixings are supplied ready assembled and offer a simple and versatile method of bundling and fixing cables. The fir-tree base will easily push into pre-punched holes in panels or threaded, blind, holes and offers a very secure fixing. The two-piece design enables the head of the tie to be orientated to the required position to ease assembly, whilst the 'disc' on the top of the fir tree covers the hole and minimises the ingress of water and dirt.
    Fixation Method Fir Tree
    Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION DT50RDHFT6XLG-PA66HS/PA66HIRHS-BK
    Pack Cont. 250pcs.
    Package Content packed in bag
    Product Family Fir tree parts FT6
    Product Group 2-piece fixing ties with fir tree, with disc, for round holes
    Tie Closure plastic pawl
    Type DT50RDHFT6XLG
    Bundle Diameter max (metric) 45.0mm
    Bundle ∅ 4.0-45.0mm
    Bundle ∅ min. 4.0mm
    Length (L) 200.0mm
    Min.Tensile Strength 225N
    Panel Thickness max. 1.2-8.5mm
    Thickness (T) 1.2mm
    Weight/Unit 0.0023kg
    Width (W) 4.6mm
    for Hole ∅ (FH) 6.3 - 6.7 mm
    for Panel Thickness min - max 1.2 - 8.5 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    Customs Number 39269097
    GTIN-13 / EAN 4031026640167
    Packaging 1 - Qty 250
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 0.575kg
    Packaging 3 - Height (m) 0.25m
    Packaging 3 - Length (m) 0.6m
    Packaging 3 - Qty 1500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.06m³
    Packaging 3 - Weight (kg) 4.2kg
    Packaging 3 - Width (m) 0.4m
    Packaging 4 - Height (m) 1.144m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 24000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.098m³
    Packaging 4 - Weight (kg) 88.2kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
