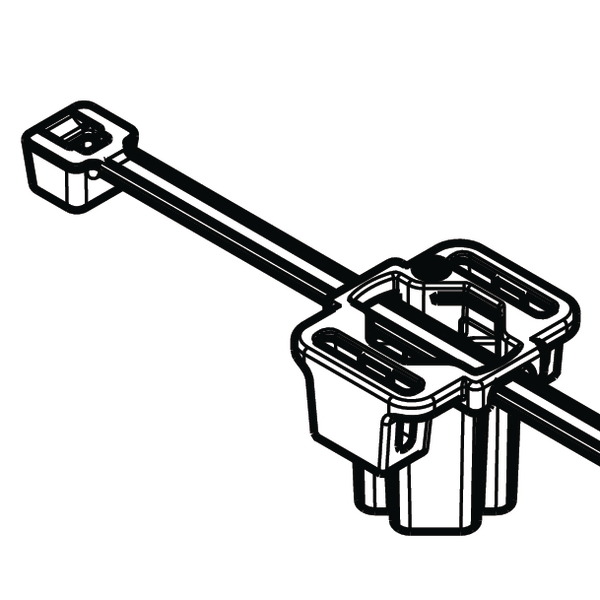

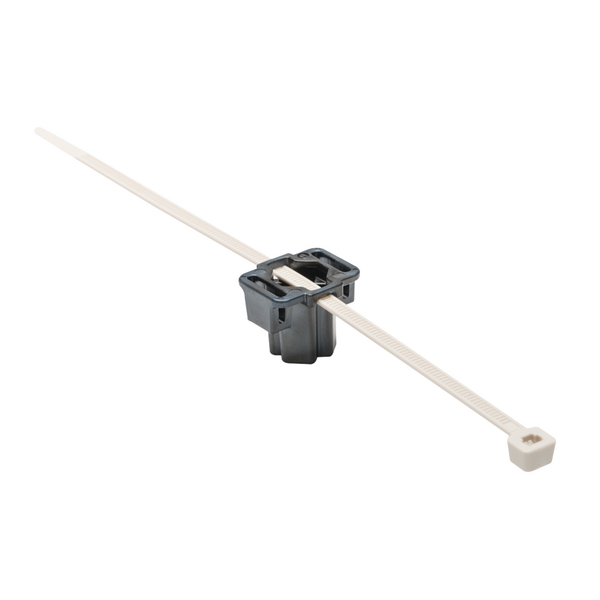

Fixing tie for stud, ∅4.0-50.0mm, beige/silver, 3000pcs.
Art.-Nr. 156-02232 | PAT100LSBS5-6U2SET-PPS/PAEK-BGE/SR |  Details

Versatile two-piece design allows cable routing above, perpendicular or parallel to stud.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Cable Tie Polyaryletherketone (PAEK)
    Colour Beige (BGE), Silver (SR)
    Fixation Method Stud Mount
    Identification Plate Position none
    Material Polyphenylene Sulfide (PPS), Polyaryletherketone (PAEK)
    PART DESCRIPTION PAT100LSBS5-6U2SET-PPS/PAEK-BGE/SR
    Pack Cont. 3000pcs.
    Package Content packed in carton
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type PAT100LSBS5-6U2SET
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 4.0-50.0mm
    Bundle ∅ min. 4.0mm
    Height (H) 18.75mm
    Length (L) 203.2mm
    Min.Tensile Strength 223N
    Stud ∅ 0.20 ", 0.24"
    Stud ∅ 5.0 mm, 6.0 mm
    Weight/Unit 0.004417kg
    Width (W) 23.25mm
    Width (W2) 20.05mm
    for Hole ∅ (FH) M5 x 0.8, M6 x 1, T5
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +150 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised No
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026593715
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.219075m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0529m³
    Packaging 3 - Weight (kg) 14.021kg
    Packaging 3 - Width (m) 0.3984625m
    Packaging 4 - Height (m) 1.239m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 45000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.189m³
    Packaging 4 - Weight (kg) 231.315kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
