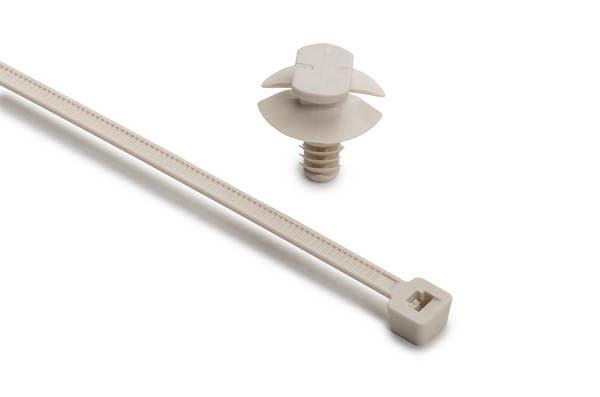

Fixing tie for hole (round), inside serrated, ∅1.5-50.8mm, beige, 2000pcs.
Art.-Nr. 156-04141 | PAT100RSDFT6.5SET-PAEK-BGE |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Beige (BGE), Beige (BGE)
    Fixation Method Fir Tree
    Identification Plate Position none
    Material Polyaryletherketone (PAEK)
    PART DESCRIPTION PAT100RSDFT6.5SET-PAEK-BGE
    Pack Cont. 2000pcs.
    Package Content packed in carton
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type PAT100RSDFT6.5SET
    Variant Inside Serrated
    Bundle Diameter max (metric) 50.8mm
    Bundle ∅ 1.5-50.8mm
    Bundle ∅ min. 1.5mm
    Disc ∅ 19.7mm
    Height (H) 22.1mm
    Length (L) 150.5mm
    Min.Tensile Strength 445N
    Panel Thickness max. 0.6 - 6.75mm
    Thickness (T) 1.5mm
    Width (W) 4.0mm
    for Hole ∅ (FH) 6.1 - 6.7 mm, M8 Threaded
    for Panel Thickness min - max 0.6 - 6.8 mm
    for Panel Thickness min - max 0 - 0.3 "
    CE Certification No
    CSA Certified No
    Operating Temperature -55 °C to +200 °C
    ROHS compliant Yes
    Specifications
    Country of Origin US
    GTIN-13 / EAN 4031026675343
    Packaging 1 - Qty 2000
    Packaging 1 - Type carton
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
