23/12/2024

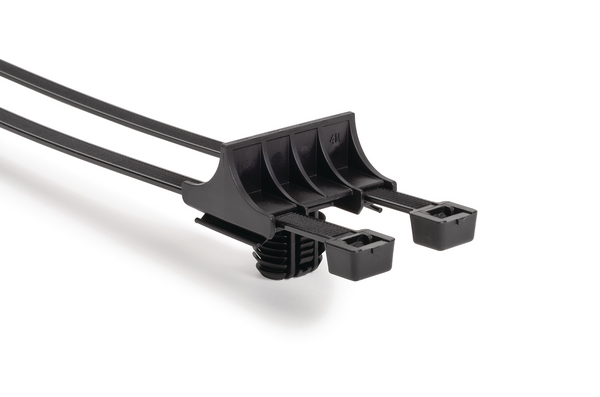

Fixing tie, inside serrated, ∅5.0-105.0mm, black, 500pcs.
Art.-Nr. 156-04007 | T120R2xDHVSDL12x17-PA66HIRHSUV-BK Details

Request your individual offer now

Cable Tie Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Colour Black (BK)
Fixation Method Fir tree for round holes
Identification Plate Position none
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION T120R2xDHVSDL12x17-PA66HIRHSUV-BK
Pack Cont. 500pcs.
Package Content packed in carton
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T120R2xDHVSDL12x17
Variant Inside Serrated
Bundle Diameter max (metric) 105.0mm
Bundle ∅ 5.0-105.0mm
Bundle ∅ min. 5.0mm
Height (H) 34.74mm
Height (H2) 13.07mm
Hole Depth 0.60mm
Hole Depth 6.75mm
Length (L) 203.2mm
Min.Tensile Strength 535N
Panel Thickness max. 0.6 - 6.75mm
Thickness (T) 1.8mm
Width (W) 7.6mm
Width (W2) 32.0mm
for Hole ∅ (FH) 12.0 x 17.0 mm
for Panel Thickness min - max 0.6 - 6.8 mm
for Panel Thickness min - max 0 - 0.3 "
CE Certification No
CSA Certified No
Flammability UL 94 HB
Halogen-free Yes
Operating Temperature -40 °C to +105 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised Yes
Country of Origin MX
GTIN-13 / EAN 4031026662961
Packaging 3 - Height (m) 0.219m
Packaging 3 - Length (m) 0.606m
Packaging 3 - Qty 500
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0528
Packaging 3 - Weight (kg) 4.45kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Qty 15000
Packaging 4 - Type pallet
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121702
