26/12/2024

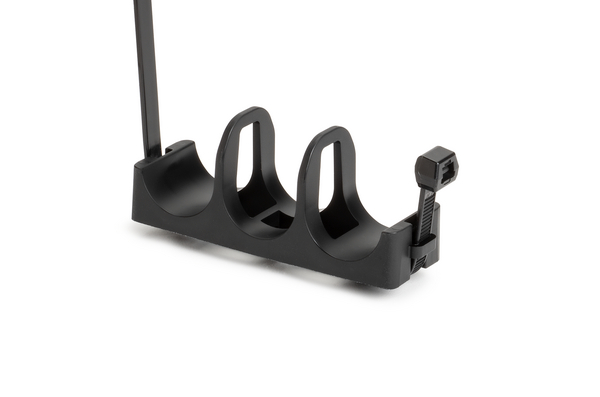

Fixing tie, ∅25mm, black, 250pcs.
Art.-Nr. 156-03182 | T120TRIPLE25-PA66HIRHSUV-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Cable Tie Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Colour Black (BK)
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T120TRIPLE25-PA66HIRHSUV-BK
    Pack Cont. 250pcs.
    Package Content packed in carton
    Type T120TRIPLE25
    Bundle Diameter max (metric) 25mm
    Bundle ∅ 25mm
    Height (H) 37.0mm
    Length (L) 96.0mm
    Length (L2) 28.0mm
    Length (L3) 387.0mm
    Min.Tensile Strength 535N
    Width (W) 29.0mm
    ∅ max. 1. loop 25mm
    ∅ max. 2. loops 25mm
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +105 °C
    Operating Temperature Foot Part (Metric) -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026712833
    Packaging 3 - Height (m) 0.3635375m
    Packaging 3 - Length (m) 0.5889625m
    Packaging 3 - Qty 250
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0612m³
    Packaging 3 - Weight (kg) 4.02kg
    Packaging 3 - Width (m) 0.28575m
    Packaging 4 - Qty 6000
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...

    Cable holder >
