19/12/2024

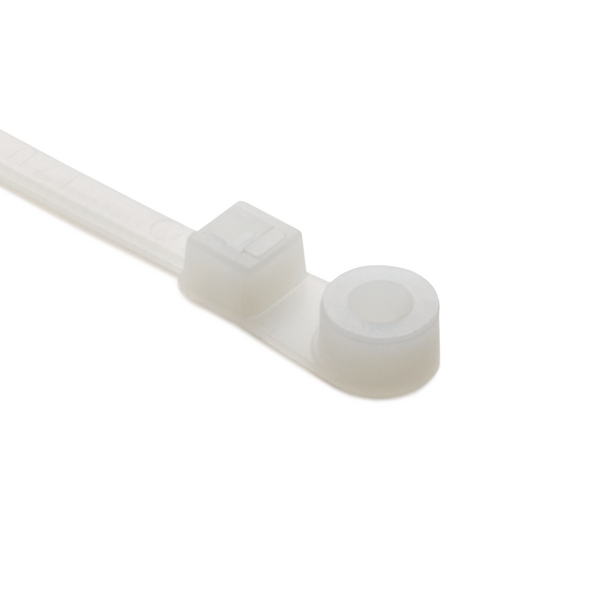

Fixing tie for screw fixation, inside serrated, ∅1.5-20.0mm, natural, 100pcs.
Art.-Nr. 113-00026 | T18MR-PA66-NA |  Details

Screw mount style creates low insertion and high extraction force.

    • One-piece bundling and fixing tie
    • Quick and easy installation
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The 'T' range of cable ties have a built in mounting hole and once fastened around the cables the bundle can be simply secured to the panel with a screw or bolt. The REL range are releasable and re-usable. The tie is first fitted to the panel and then the cables added. Ideal for fixing cables into 'gaming machines', control panels, or for temporary installations on building sites.
    Colour Natural (NA)
    Fixation Method Screw Mount
    Identification Plate Position none
    Material Polyamide 6.6 (PA66)
    Mounting Screw Type #4 (M2.5) Screw
    PART DESCRIPTION T18MR-PA66-NA
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family MR Series
    Product Group 1-piece fixing ties with mounting head for screws
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T18MR
    Variant Inside Serrated
    Bundle Diameter max (metric) 20.0mm
    Bundle ∅ 1.5-20.0mm
    Bundle ∅ min. 1.5mm
    Height (H) 4.20mm
    Length (L) 110.0mm
    Mechanical Strength 53.4N
    Min.Tensile Strength 80N
    Thickness (T) 1.0mm
    Width (W) 2.5mm
    for Hole ∅ (FH) 3.1 mm
    CE Certification Yes
    CSA Certified No
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    Plenum Rating AH-2
    ROHS compliant Yes
    Specifications
    Specifications UL 62275
    UL Listed (US and Canada) Yes
    UL Listed (US and Canada) Yes
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) Yes
    UL-File Number E64139
    UV-Stabilised No
    Country of Origin MX
    GTIN-13 / EAN 4031026415840
    Packaging 3 - Height (m) 0.136525m
    Packaging 3 - Length (m) 0.5191125m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0217m³
    Packaging 3 - Width (m) 0.3063875m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
