23/12/2024

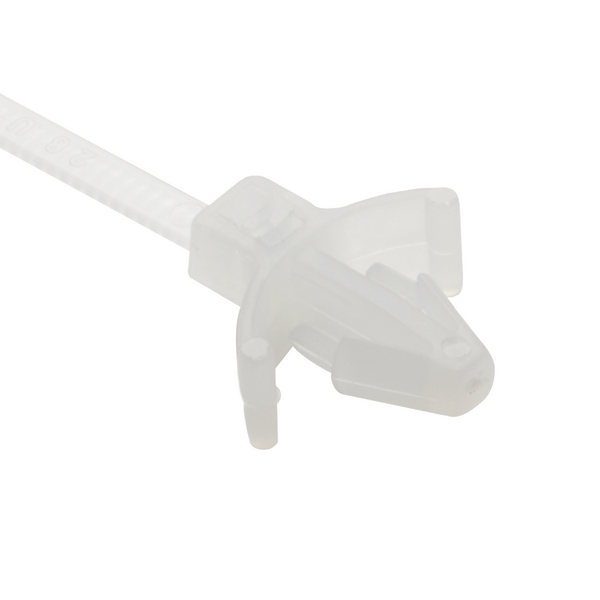

Fixing tie for hole (round), inside serrated, ∅1.5-22.2mm, natural, 100pcs.
Art.-Nr. 126-00041 | T18RWPM-PA66-NA |  Details

A wide range of arrowhead fixing ties which are suitable for different panel thicknesses and hole diameters.

    • Easy to assemble without the need for a tool
    • Cable tie head always situated in defined position
    • Arrowhead simply locks into place
    • Supporting legs provide a secure and firm fixing in areas where space is limited
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application For bundling and fixing of cable harnesses, pipes and hoses in many different industries, including automotive, aerospace, white goods manufacturing and panel building.
    Colour Natural (NA)
    Fixation Method arrowhead
    Identification Plate Position none
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION T18RWPM-PA66-NA
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family for round holes
    Product Group 1-piece fixing ties with arrowhead, with wings
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T18RWPM
    Variant Inside Serrated
    Bundle Diameter max (metric) 22.2mm
    Bundle ∅ 1.5-22.2mm
    Bundle ∅ min. 1.5mm
    Disc ∅ 13.1mm
    Height (H) 5.80mm
    Length (L) 113.0mm
    Min.Tensile Strength 80N
    Panel Thickness max. 1.52 - 3.2mm
    Thickness (T) 1.1mm
    Width (W) 2.5mm
    Width (W2) 6.4mm
    for Hole ∅ (FH) 4.8 - 5.6 mm
    for Panel Thickness min - max 1.5 - 3.2 mm
    for Panel Thickness min - max 0.1 - 0.1 "
    CE Certification Yes
    CSA Certified No
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    Plenum Rating AH-2
    ROHS compliant Yes
    Specifications
    Specifications UL 62275
    UL Listed (US and Canada) Yes
    UL Listed (US and Canada) Yes
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) Yes
    UL-File Number E64139
    UV-Stabilised No
    Country of Origin MX
    GTIN-13 / EAN 4031026419381
    Packaging 3 - Height (m) 0.142875m
    Packaging 3 - Length (m) 0.5159375m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0229m³
    Packaging 3 - Width (m) 0.31115m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
