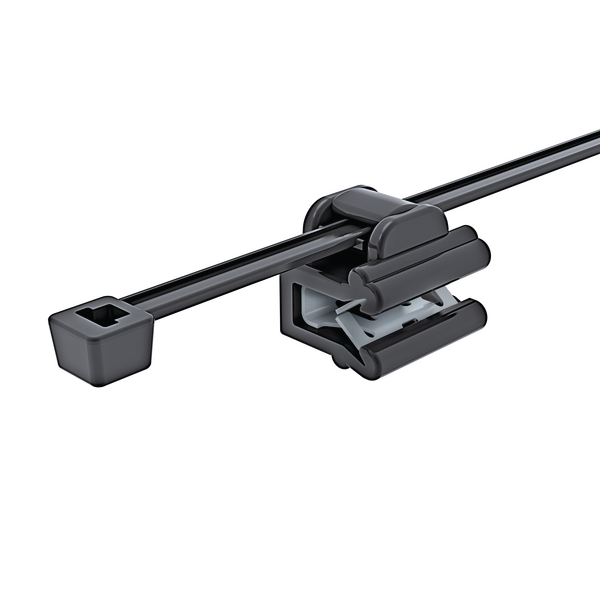

Fixing tie for edge, inside serrated, ∅1.0-32.0mm, black, 1000pcs.
Art.-Nr. 156-01046 | T30REC22SET-PA66HS/PA66HIRHS-BK |  Details

T50ROSEC10 fitted onto a plastic panel to hold a Ø 6 mm harness.

    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP
    Colour Black (BK)
    Identification Plate Position none
    Key product features for narrow bundling
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T30REC22SET-PA66HS/PA66HIRHS-BK
    Pack Cont. 1000pcs.
    Package Content packed in bag
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T30REC22SET
    Variant Inside Serrated
    Bundle Diameter max (metric) 32.0mm
    Bundle ∅ 1.0-32.0mm
    Bundle ∅ min. 1.0mm
    Height (H) 1.1mm
    Height (H2) 12.5mm
    Length (L) 150.0mm
    Length (L2) 15.0mm
    Min.Tensile Strength 135N
    Width (W) 3.6mm
    Width (W2) 9.2mm
    for Panel Thickness min - max 1 - 3 mm
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    GTIN-13 / EAN 4031026458090
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121731
    Show all
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
