Fixing tie for hole (round), inside serrated, ∅1.5-35.0mm, black, 500pcs.
Art.-Nr. 156-00953 | T30RFT4-PA66HIRHSUV/PA66HS-BK |  Details

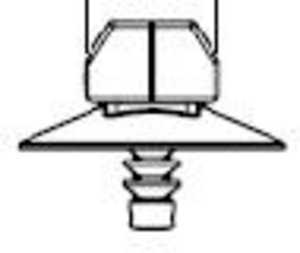

Disc feature prevents rattling in high-vibration applications and protects against debris ingress.

    • Pre-assembled 2-piece fixing tie with fir tree foot part
    • Cable tie head can be moved after bundling
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
    Colour Black (BK)

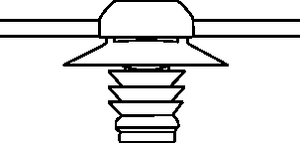

    Description These two-piece fixings are supplied ready assembled and offer a simple and versatile method of bundling and fixing cables. The fir-tree base will easily push into pre-punched holes in panels or threaded, blind, holes and offers a very secure fixing. The two-piece design enables the head of the tie to be orientated to the required position to ease assembly, whilst the 'disc' on the top of the fir tree covers the hole and minimises the ingress of water and dirt.
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T30RFT4-PA66HIRHSUV/PA66HS-BK
    Pack Cont. 500pcs.
    Package Content packed in carton
    Product Family Fir tree parts FT4
    Product Group 2-Pieces Fixing Ties with Fir Tree, with Disc, for Round Holes
    Tie Closure plastic pawl
    Type T30RFT4
    Variant Inside Serrated
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 1.5-35.0mm
    Bundle ∅ min. 1.5mm
    Disc ∅ 13mm
    Height (H) 11.8mm
    Length (L) 148.0mm
    Min.Tensile Strength 135N
    Panel Thickness max. 1.0 - 3.0mm
    Width (W) 3.6mm
    for Hole ∅ (FH) 3.3 - 4.0 mm
    for Panel Thickness min - max 1 - 3 mm
    for Panel Thickness min - max 0 - 0.1 "
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +105 °C, (+135 °C, 200 h), -40 °C to +125 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin US
    GTIN-13 / EAN 4031026449548
    Packaging 3 - Type box
    Packaging 3 - Weight (kg) 11.32kg
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
