23/12/2024

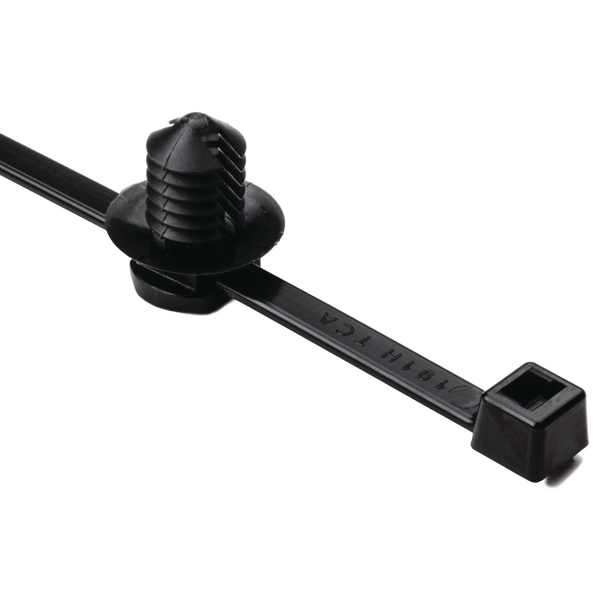

Fixing tie for hole (round), inside serrated, ∅4.0-110mm, black, 500pcs.
Art.-Nr. 156-00061 | T50LFT8-PA66HS-BK |  Details

Disc feature prevents rattling in high-vibration applications and protects against debris ingress.

    • Pre-assembled 2-piece fixing tie with fir tree foot part
    • Cable tie head can be moved after bundling
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Fixation Method Fir Tree
    Foot Part Polyamide 6.6, heat stabilised (PA66HS)
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T50LFT8-PA66HS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family Fir tree parts FT8
    Product Group 2-piece fixing ties with fir tree, with disc, for round holes
    Tie Closure plastic pawl
    Type T50LFT8
    Variant Inside Serrated

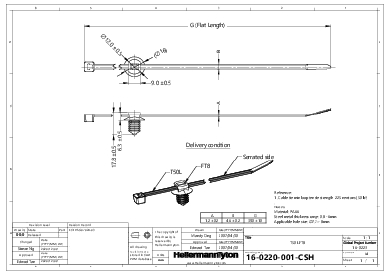

    Bundle Diameter max (metric) 110mm
    Bundle ∅ 4.0-110mm
    Bundle ∅ min. 4.0mm
    Disc ∅ 16.0mm
    Height (H) 1.2mm
    Height (H2) 11.5mm
    Length (L) 390.0mm
    Length (L2) 12.0mm
    Length (L3) 17.8mm
    Min.Tensile Strength 225N
    Thickness (T) 1.2mm
    Width (W) 4.6mm
    Width (W2) 9.0mm
    Width (W3) 9.0mm
    for Hole ∅ (FH) 7.7 - 8.0 mm
    for Panel Thickness min - max 0.8 - 6 mm
    for Panel Thickness min - max 0 - 0.3 "
    Flammability UL 94 V2
    Operating Temperature -40 °C to +105 °C
    Operating Temperature Foot Part (Metric) -40 °C to +105 °C, (+145 °C, 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin SG
    GTIN-13 / EAN 4031026424200
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
