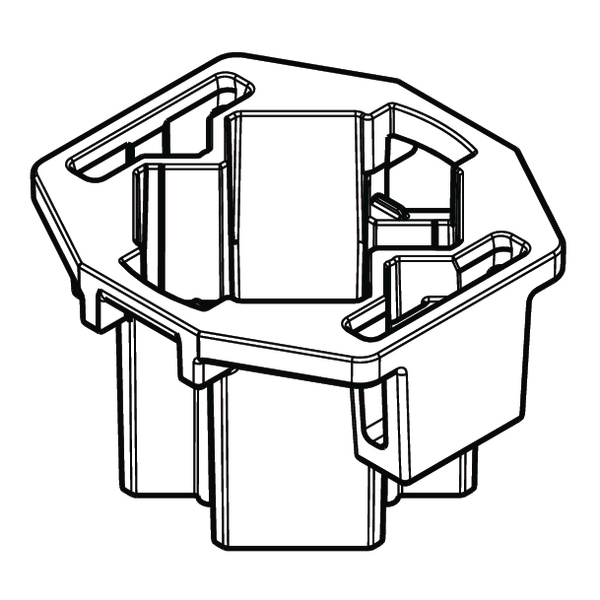

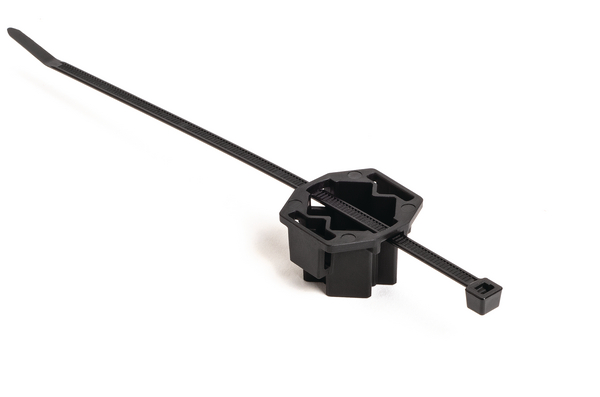

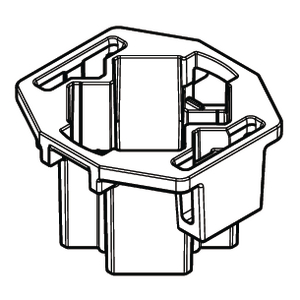

Fixing tie with pipe/tube holder, ∅10.0-45.0mm, black, 1000pcs.
Art.-Nr. 156-02995 | T50R0SBS14SET-PA66HIRHSUV-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Cable Tie Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Colour Black (BK)
    Fixation Method Stud Mount
    For Ties T50R, T120R0HSH4
    Identification Plate Position none
    Key product features rotatable, for multiple routing, removable
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T50R0SBS14SET-PA66HIRHSUV-BK
    Pack Cont. 1000pcs.
    Package Content packed in carton
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50R0SBS14SET
    Bundle Diameter max (metric) 45.0mm
    Bundle ∅ 10.0-45.0mm
    Bundle ∅ min. 10.0mm
    Height (H) 21.0mm
    Height (H2) 13.1mm
    Length (L) 203.2mm
    Min.Tensile Strength 223N
    Stud ∅ 0.55"
    Stud ∅ 14.0 mm
    Width (W) 34.0mm
    Width (W2) 32.1mm
    for Hole ∅ (FH) M14
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin US
    GTIN-13 / EAN 4031026638409
    Packaging 1 - Weight (kg) 0.0045kg
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
