02/04/2025

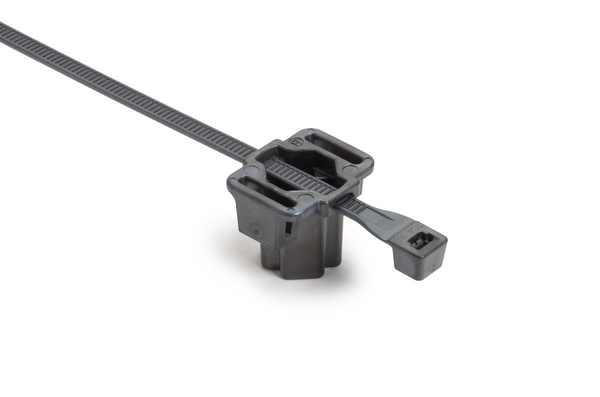

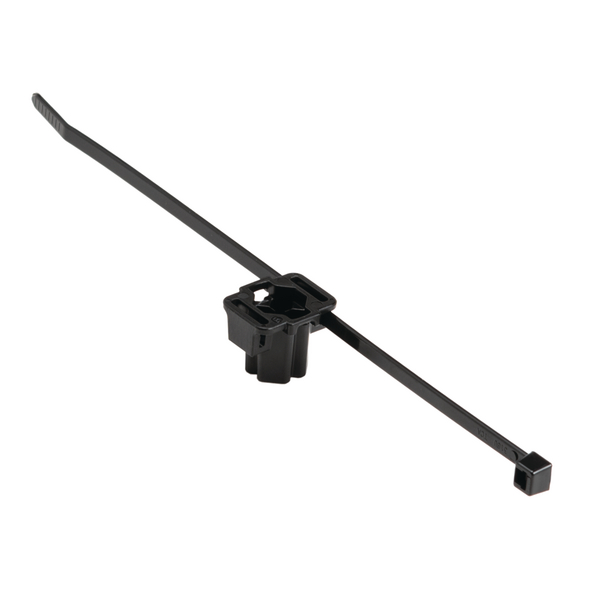

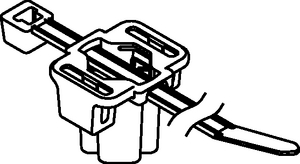

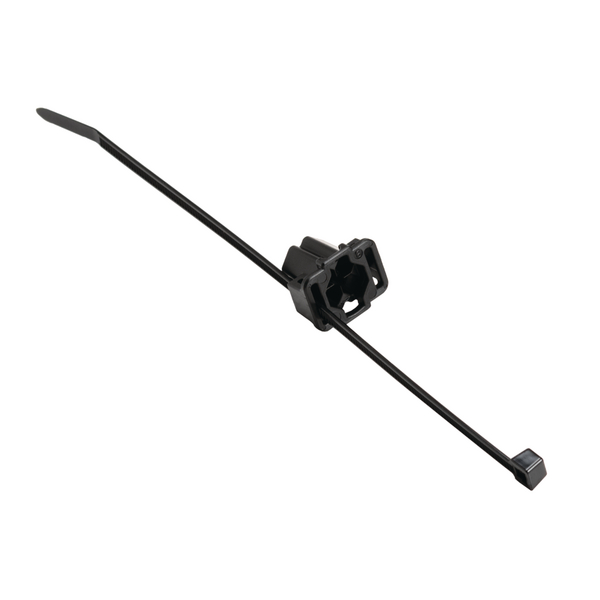

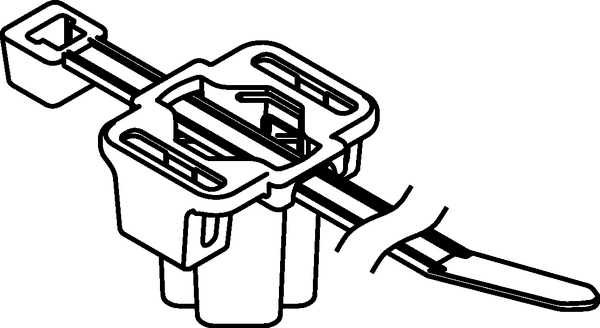

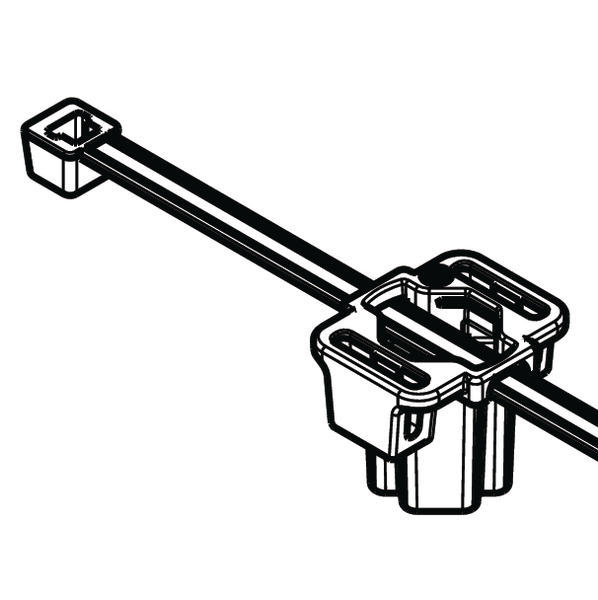

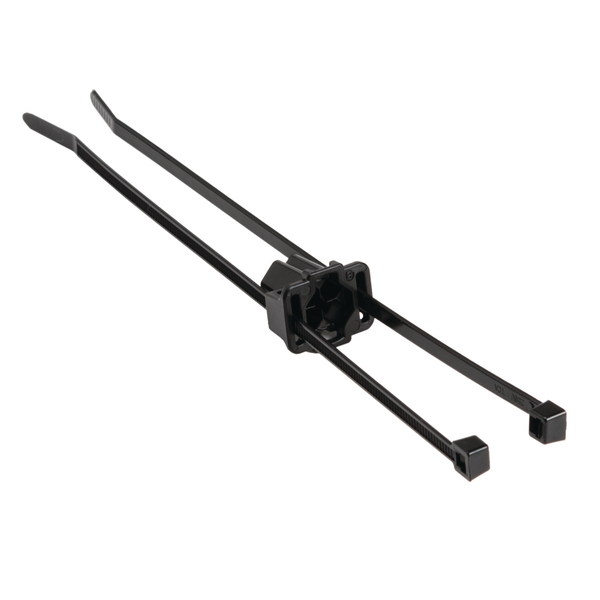

Fixing tie for stud, ⌀4.0-50.0mm, black, 3000pcs.
Art.-Nr. 156-01547 | T50R0SBS5-6U-SET-PA66HS/PA66HIRHSUV-BK |

Copied

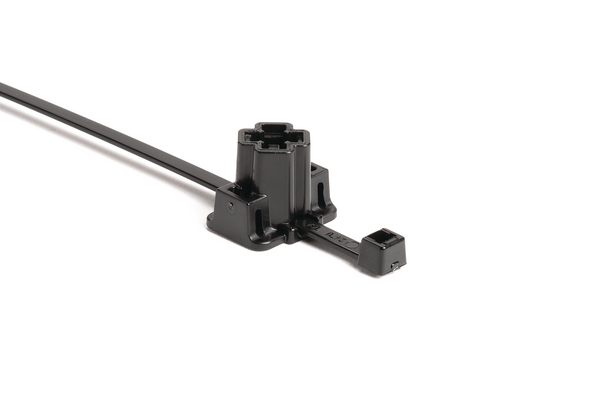

Versatile two-piece design allows cable routing above, perpendicular or parallel to stud.

    • Versatile design allows cable routing above, perpendicular or parallel to stud.

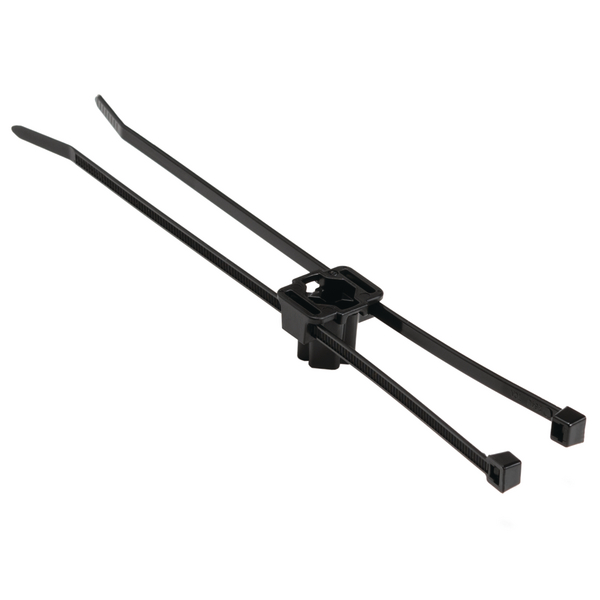

    • Can mount up to three bundles simultaneously, making efficient use of a single mounting point.
    • Four-pawl, three-tooth design delivers outstanding stud retention to keep bundles secure.
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Fixation Method Stud Mount
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T50R0SBS5-6U-SET-PA66HS/PA66HIRHSUV-BK
    Pack Cont. 3000pcs.
    Package Content packed in pack
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50R0SBS5-6U-SET
    Bundle ⌀ 4.0-50.0mm
    Bundle ⌀ max. 50.0mm
    Bundle ⌀ min. 4.0mm

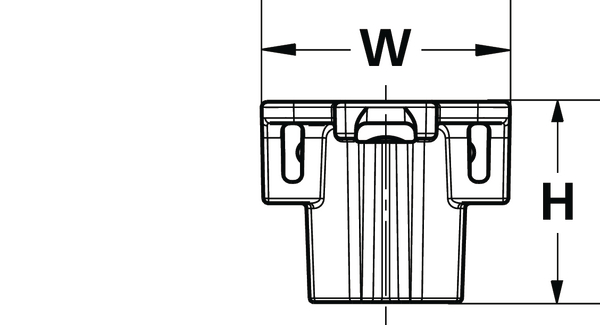

    Height (H) 18.75mm
    Length (L) 202.0mm
    Min.Tensile Strength 222N
    Stud ⌀ 0.20 ", 0.24"
    Stud ⌀ 5.0 mm, 6.0 mm
    Weight/Unit 0.004039kg
    Width (W) 4.6mm
    Width (W2) 20.05mm
    for Hole ⌀ (FH) M5 x 0.8, M6 x 1, T5
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised No
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026533520
    Packaging 1 - Type pack
    Packaging 3 - Height (m) 0.219075m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0529m³
    Packaging 3 - Weight (kg) 12.887kg
    Packaging 3 - Width (m) 0.3984625m
    Packaging 4 - Height (m) 1.239m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 45000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.189m³
    Packaging 4 - Weight (kg) 214.305kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
