13/11/2024

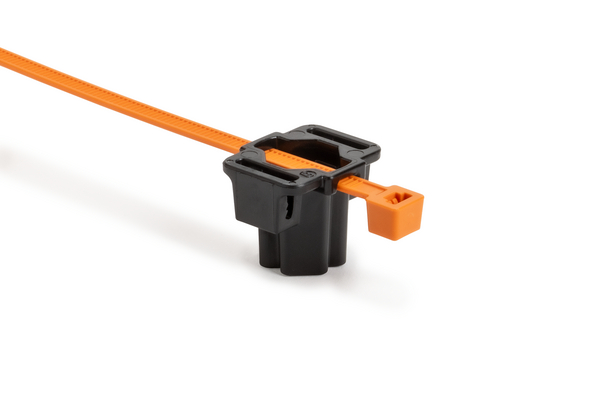

Fixing tie for stud, ∅4.0-50.0mm, orange/black, 3000pcs.
Art.-Nr. 156-04041 | T50R0SBS5-6U-SET-PA66HIRHS/PA66HIRHSW-OG/BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Orange (OG), High Voltage (HV), Black (BK)
    Fixation Method Stud Mount
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Polyamide 6.6, high impact modified, heat and UV-resistant (PA66HIRHSW)
    PART DESCRIPTION T50R0SBS5-6U-SET-PA66HIRHS/PA66HIRHSW-OG/BK
    Pack Cont. 3000pcs.
    Package Content packed in carton
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50R0SBS5-6U-SET
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 4.0-50.0mm
    Bundle ∅ min. 4.0mm

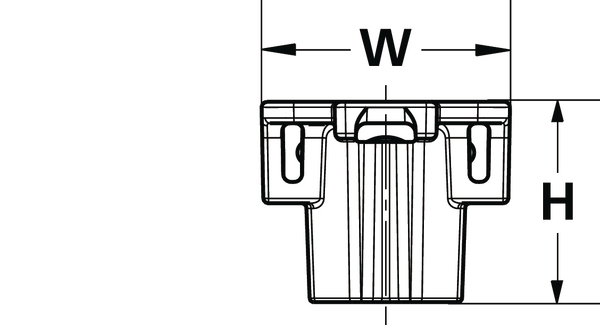

    Height (H) 18.75mm
    Length (L) 202.0mm
    Min.Tensile Strength 222N
    Strap Width max. (G) 0.22"
    Stud ∅ 0.20 ", 0.24"
    Stud ∅ 5.0 mm, 6.0 mm
    Width (W) 4.6mm
    for Hole ∅ (FH) M5 x 0.8, M6 x 1, T5
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin MX
    GTIN-13 / EAN 4031026665818
    Packaging 3 - Height (m) 0.210m
    Packaging 3 - Length (m) 0.605m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0502m³
    Packaging 3 - Weight (kg) 12.4kg
    Packaging 3 - Width (m) 0.395m
    Packaging 4 - Qty 90000
    Packaging 4 - Type pallet
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
