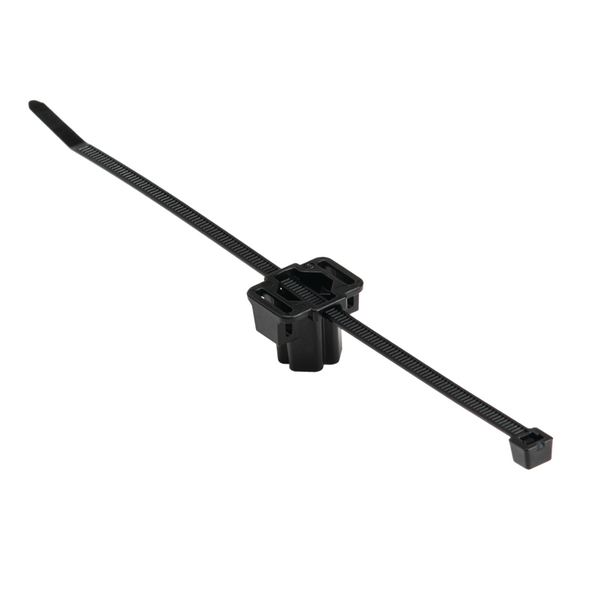

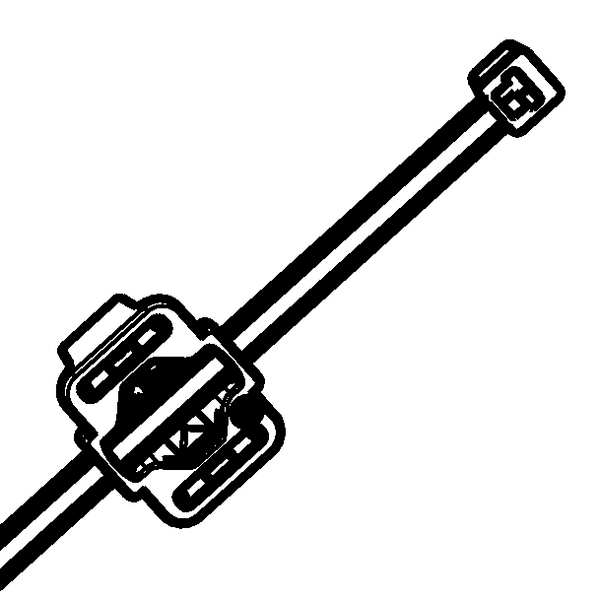

Fixing tie for stud, ∅4.0-50.0mm, black, 100pcs.
Art.-Nr. 156-02586 | T50R0SBS5-6U-PA66HS/PA66HIRHS-BK |  Details

    • Pre-assembled with cable tie and weld stud mounting base
    • Quick and easy installation
    • Head rotates into perfect position for installation
    • 'Soft-push' design for tool-free installation
    • Mushroom-shaped SBH handles insulation or a sound-deadening blanket
    • SBS ideal for installation prior to attaching cable (i.e. no lateral tolerances required)
    • SB5 allow lateral tolerance for fixing point
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where 5mm weld studs or 5mm ISO bolts are used and cables need to be bundled and secured
    Colour Black (BK)
    Fixation Method Stud Mount
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50R0SBS5-6U-PA66HS/PA66HIRHS-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Group 2-Piece Fixing Ties for Weld Studs
    Tie Closure plastic pawl
    Type T50R0SBS5-6U
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 4.0-50.0mm
    Bundle ∅ min. 4.0mm
    Height (H) 1.2mm
    Height (H2) 18.75mm
    Length (L) 202.0mm
    Min.Tensile Strength 200N
    Stud ∅ 0.20"
    Stud ∅ M5, M6
    Width (W) 4.6mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026726267
    Packaging 3 - Height (m) 0.142875m
    Packaging 3 - Length (m) 0.5159375m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0229m³
    Packaging 3 - Width (m) 0.31115m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
