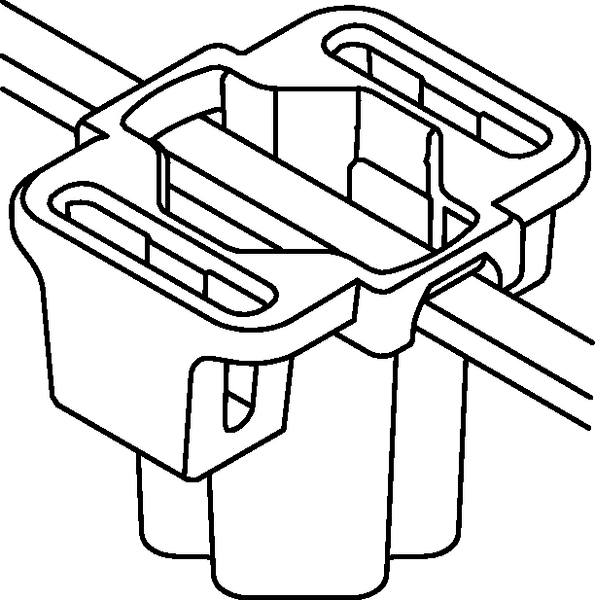

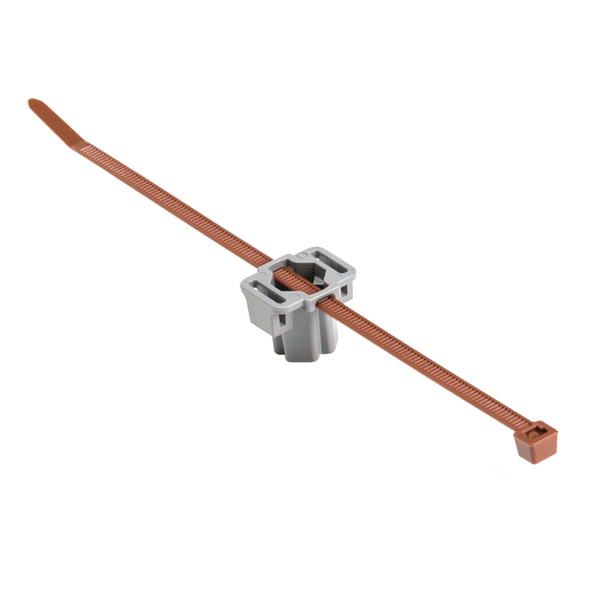

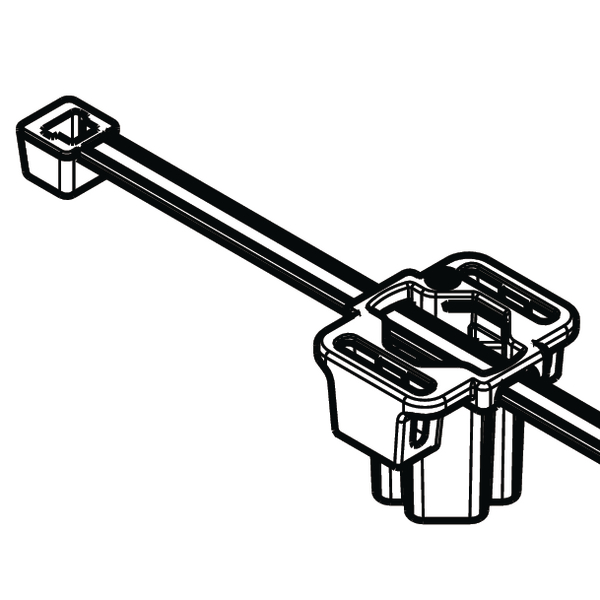

Fixing tie for stud, ∅4.0-50.0mm, brown/grey, 3000pcs.
Art.-Nr. 156-01668 | T50R1SBS5-6U-SET-PA46-BN/GY |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Cable Tie Polyamide 4.6 (PA46)
    Colour Brown (BN), Grey (GY)
    Fixation Method Stud Mount
    Identification Plate Position none
    Material Polyamide 4.6 (PA46)
    PART DESCRIPTION T50R1SBS5-6U-SET-PA46-BN/GY
    Pack Cont. 3000pcs.
    Package Content packed in carton
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50R1SBS5-6U-SET
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 4.0-50.0mm
    Bundle ∅ min. 4.0mm
    Height (H) 18.75mm
    Length (L) 203.2mm
    Min.Tensile Strength 223N
    Stud ∅ 0.20 ", 0.24"
    Stud ∅ 5.0 mm, 6.0 mm
    Weight/Unit 0.00424kg
    Width (W) 23.25mm
    Width (W2) 20.05mm
    for Hole ∅ (FH) M5 x 0.8, M6 x 1, T5
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +130 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised No
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026574134
    Packaging 3 - Height (m) 0.219075m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0529m³
    Packaging 3 - Weight (kg) 13.49kg
    Packaging 3 - Width (m) 0.3984625m
    Packaging 4 - Height (m) 1.239m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 45000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.189m³
    Packaging 4 - Weight (kg) 223.35kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
