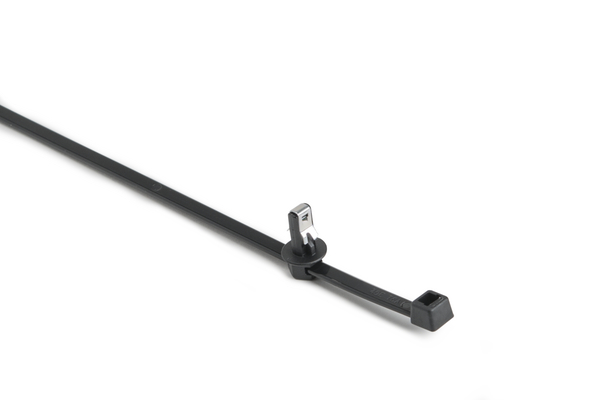

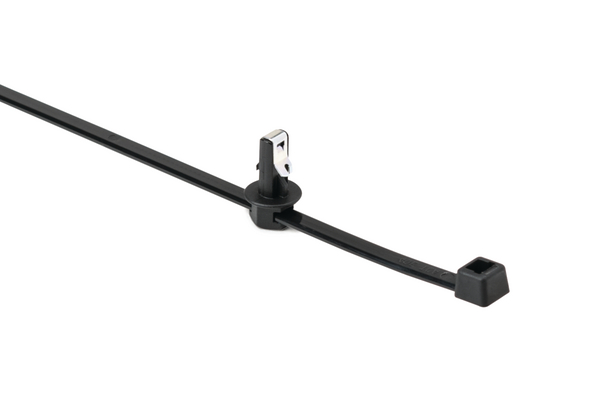

Fixing tie to close hole, ∅2.5-50.0mm, black, 500pcs.
Art.-Nr. 156-01726 | T50RBHMB-PA66HS-BK |  Details

Reusable fastener can be removed from threaded or non-threaded holes using a 5/16

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Fixation Method Blind Plug
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T50RBHMB-PA66HS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Type T50RBHMB
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 2.5-50.0mm
    Bundle ∅ min. 2.5mm

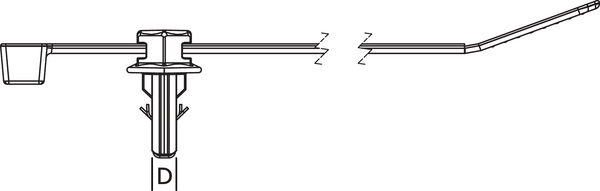

    Diameter (D) 6.35mm
    Height (H) 18.7mm
    Height (H2) 12.4mm
    Hole Depth 12.7mm
    Length (L) 203.2mm
    Min.Tensile Strength 225N
    Weight/Unit 0.00663kg
    Width (W) 7.8mm
    for Hole ∅ (FH) 6.25 - 6.45 mm
    ∅ D 0.25"
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +125 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026581255
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 3.315001kg

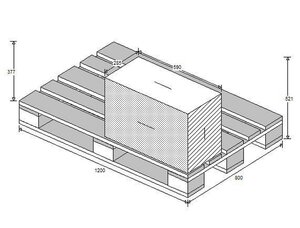

    Packaging 3 - Height (m) 0.37668199999999996m
    Packaging 3 - Length (m) 0.5902959999999999m
    Packaging 3 - Qty 500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0635m³
    Packaging 3 - Weight (kg) 4.132001kg
    Packaging 3 - Width (m) 0.285496m

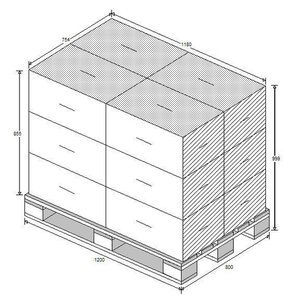

    Packaging 4 - Height (m) 1.275m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 6000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.224m³
    Packaging 4 - Weight (kg) 70.584kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
