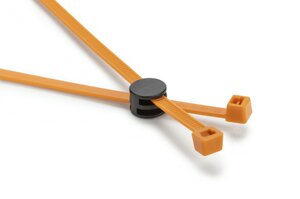

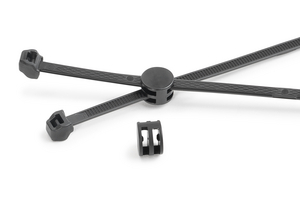

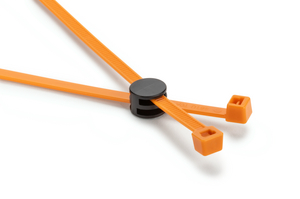

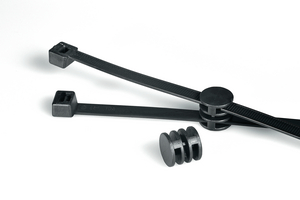

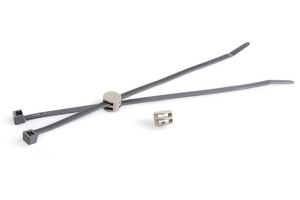

Fixing tie for cable bundles, inside serrated, ∅2.0-47.0mm, black, 500pcs.
Art.-Nr. 156-00276 | T50RCOUPLER-PA66HIRHS/PA66HIR(S)-BK |  Details

    • Pre-assembled 2-piece fixing tie with coupler
    • Cable tie head can be moved after bundling
    • Easy addition of cables after assembly
    • For parallel routing of bundles that can be twisted 90° even after installation
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download
    Cable Tie Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Colour Black (BK)
    Description The Coupler is the simple way to connect two cable ties for a parallel routing of two bundles. His special design allows the ties 90 degrees of rotation. This is ideal for all applications where the cable, pipe or hose should move flexible in relation to the fixing point. The Coupler can be used with one or two cable ties. This allows easily subsequent installation or replacements of further cables, pipes or hose.
    Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Identification Plate Position none
    Key product features for multiple routing
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Polyamide 6.6, high impact modified, scan black (PA66HIR(S))
    PART DESCRIPTION T50RCOUPLER-PA66HIRHS/PA66HIR(S)-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family T50RCoupler for max. bundle diameter 2 x 47.0 mm
    Product Group 2-piece fixing ties for parallel separation
    Short Description 2-Piece fixing tie 145x3.4 mm, for parallel separation, PA66HIRHS, black
    Tie Closure plastic pawl
    Type T50RCOUPLER
    Variant Inside Serrated
    Bundle Diameter max (metric) 47.0mm
    Bundle ∅ 2.0-47.0mm
    Bundle ∅ min. 2.0mm
    Length (L) 202.0mm
    Min.Tensile Strength 225N
    Strap Width max. (G) 0.185
    Strap Width max. (G) 4.7mm
    Weight/Unit 0.003143kg
    Width (W) 4.6mm
    ∅ max. 1. loop 50.0mm
    ∅ max. 2. loops 50.0mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    Operating Temperature Foot Part (Metric) -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 4031026436074
    Packaging 1 - Height (m) 0.07m
    Packaging 1 - Length (m) 0.41m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01205m³
    Packaging 1 - Weight (kg) 1.5915kg
    Packaging 1 - Width (m) 0.42m
    Packaging 3 - Height (m) 0.15m
    Packaging 3 - Length (m) 0.4m
    Packaging 3 - Qty 1000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.018m³
    Packaging 3 - Weight (kg) 3.552kg
    Packaging 3 - Width (m) 0.3m
    Packaging 4 - Height (m) 1.194m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 56000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.146m³
    Packaging 4 - Weight (kg) 219.912kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
